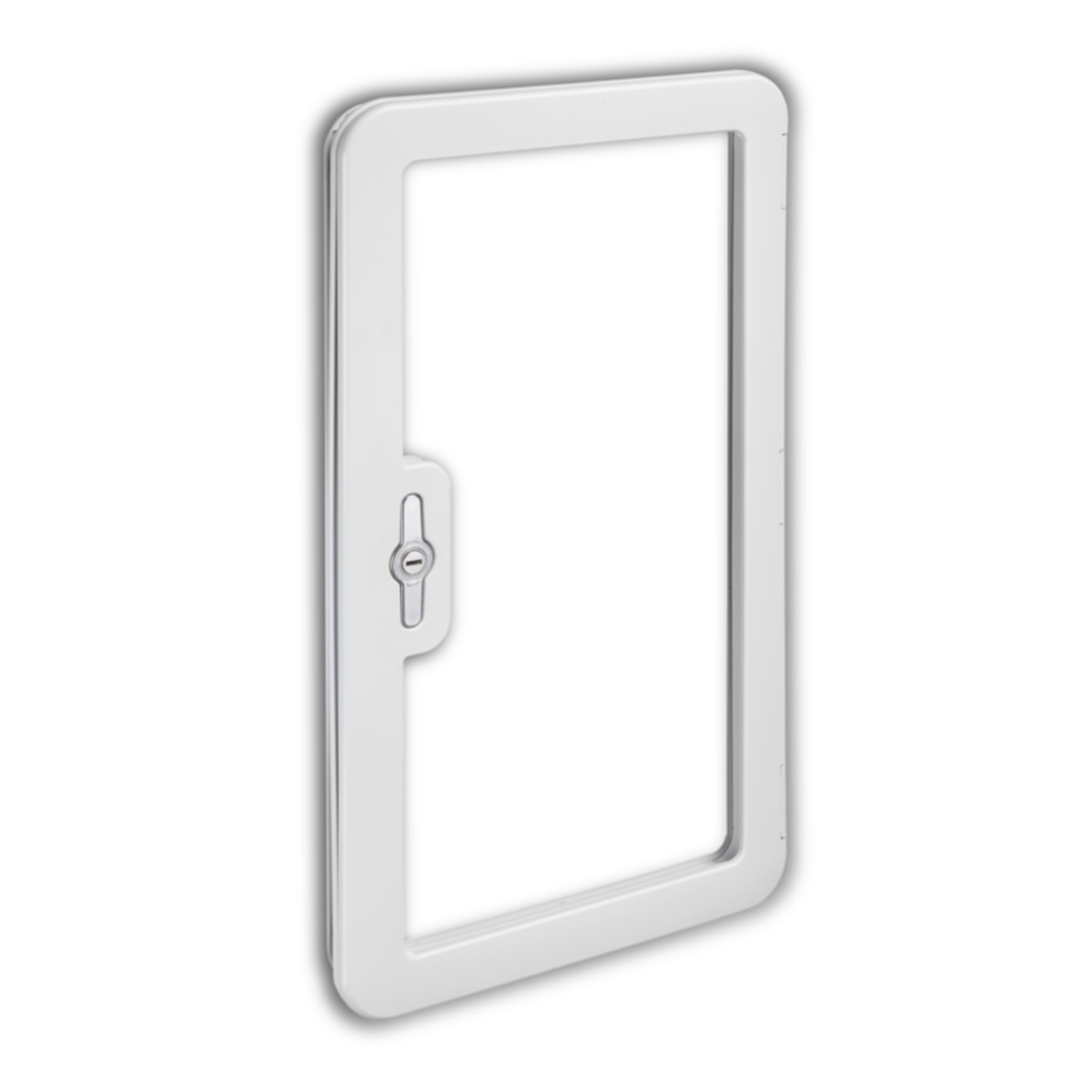

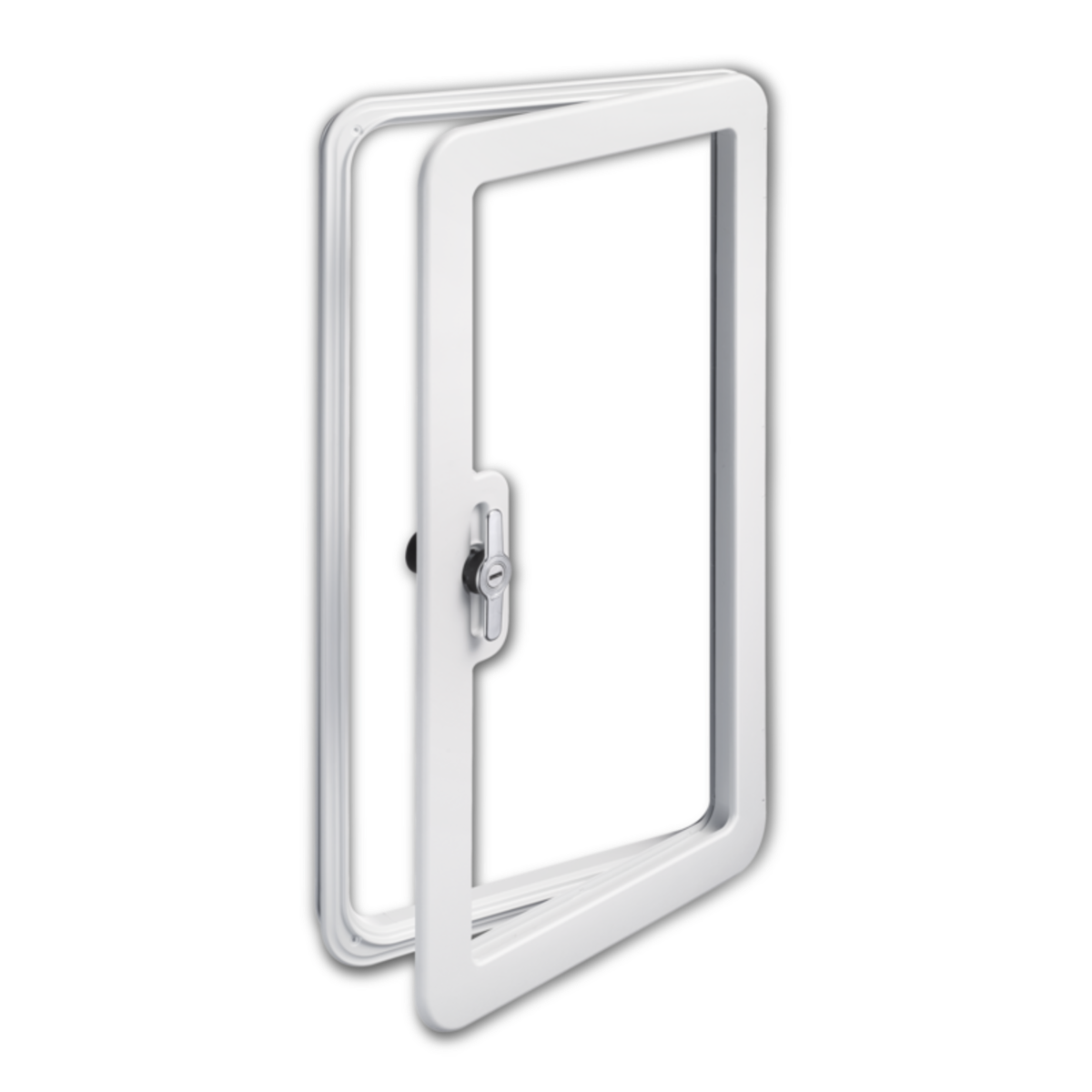

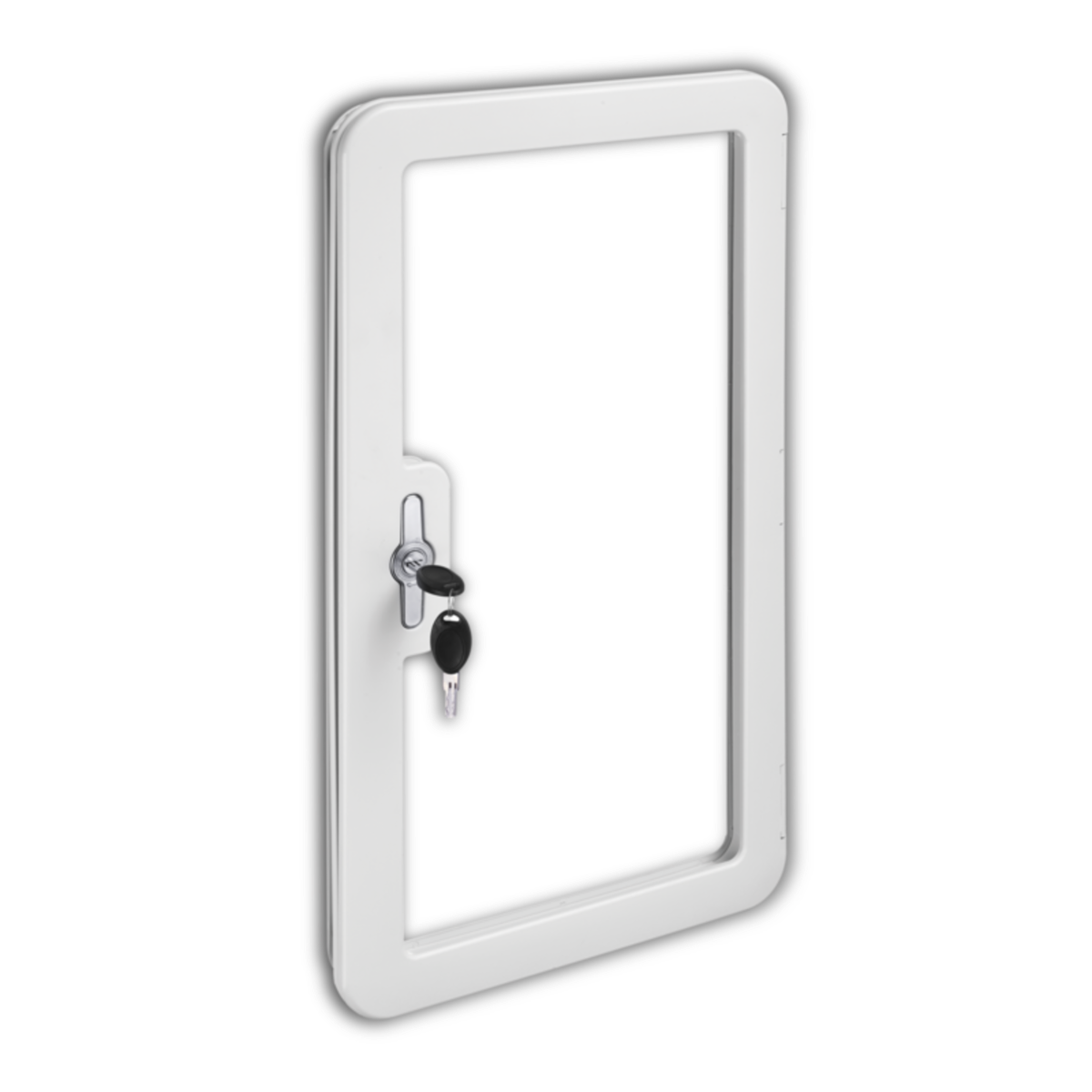

Dometic Sk 5

Service Hatch, 360 X 310 Mm

Designed to blend in with the exterior of motorhomes and caravans, this sleek service hatch features integrated ventilation for your Dometic cassette toilet. Installation is quick and easy without the need for screws. It comes complete with a secure multi-point locking and closing system.

Sku no: 9104100202

All the products you select with the Get An Offer button will be collected in the same basket.

...AND MORE

Quick and easy installation without the need for screws
Can be fitted vertically or horizontally
Features a secure multi-point locking and closing system
Service hatch with integrated ventilation for the Dometic cassette toilet
Designed to blend in with the exterior of vehicle

TECHNICAL FEATURES

Dimensions

Cut Out Height
310.00 mm

Cut Out Width
360.00 mm

Dimensions Opening Height
288 mm

Dimensions Opening Width
337 mm

Dimensions Ordered Height
310 mm

Dimensions Ordered Width
360 mm

Dimensions Product Height
335 mm

Dimensions Product Width
385 mm

Net Weight
0.90 kg

Possible Material Thickness 1 Max
36 mm

Possible Material Thickness 1 Min
23 mm

General

Model
Locker doors

Model On Label
Sk5 service hatch art1412

Product Description
Service hatch, 360 x 310 mm

Scope Of Delivery
Service hatch with manual in box

Sku Number
9104100202

Installation

Cut Out Height
310.00 mm

Cut Out Width
360.00 mm

Logistics

Dimensions Parcel Depth
413 mm

Dimensions Parcel Height
119 mm

Dimensions Parcel Width
385 mm

Ean-13
4015704160239

Parcel Weight
1.48 kg

DOCUMENTS

DOWNLOAD

Installation & Operating Manual - EN - installation-and-operating-manual-52106.pdf
