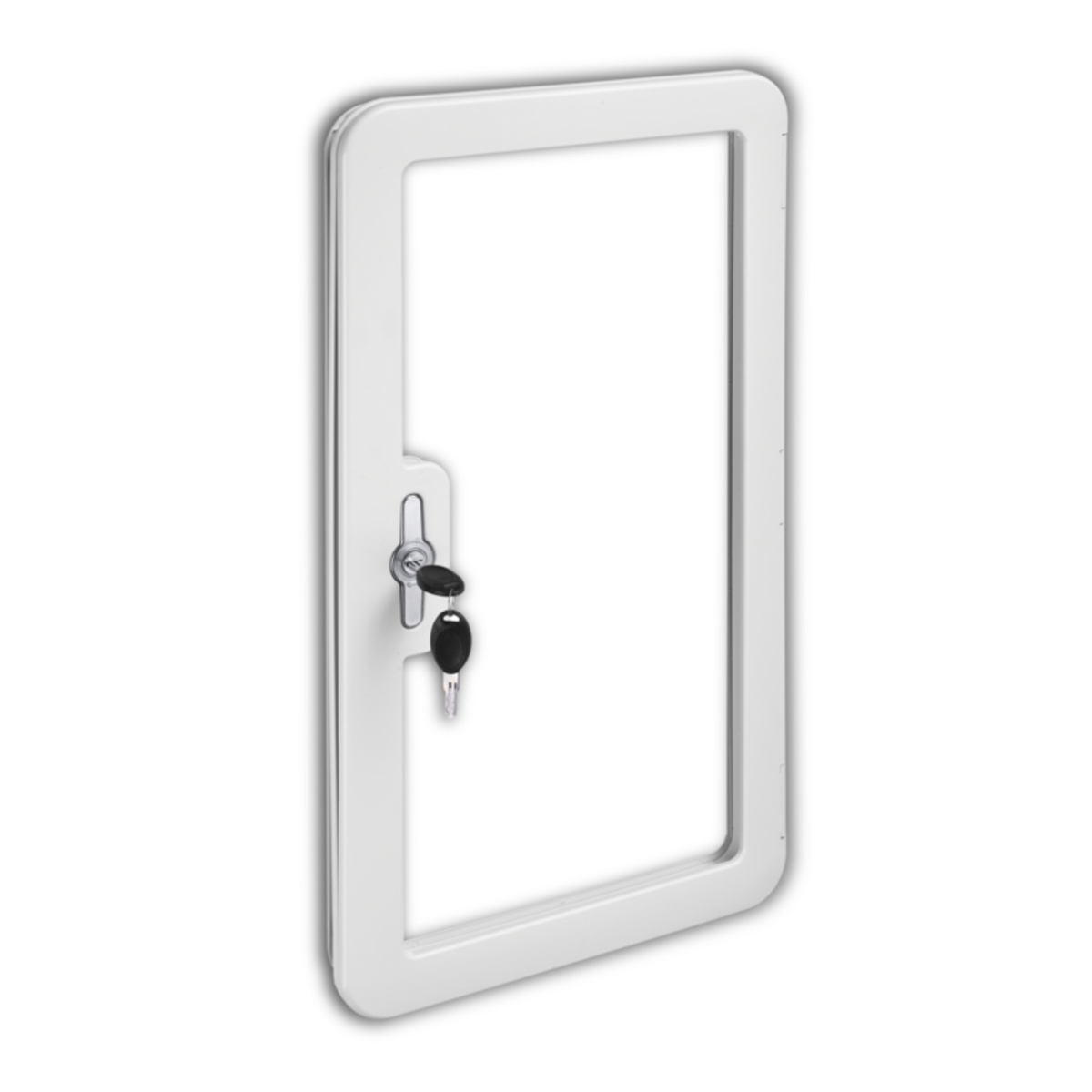

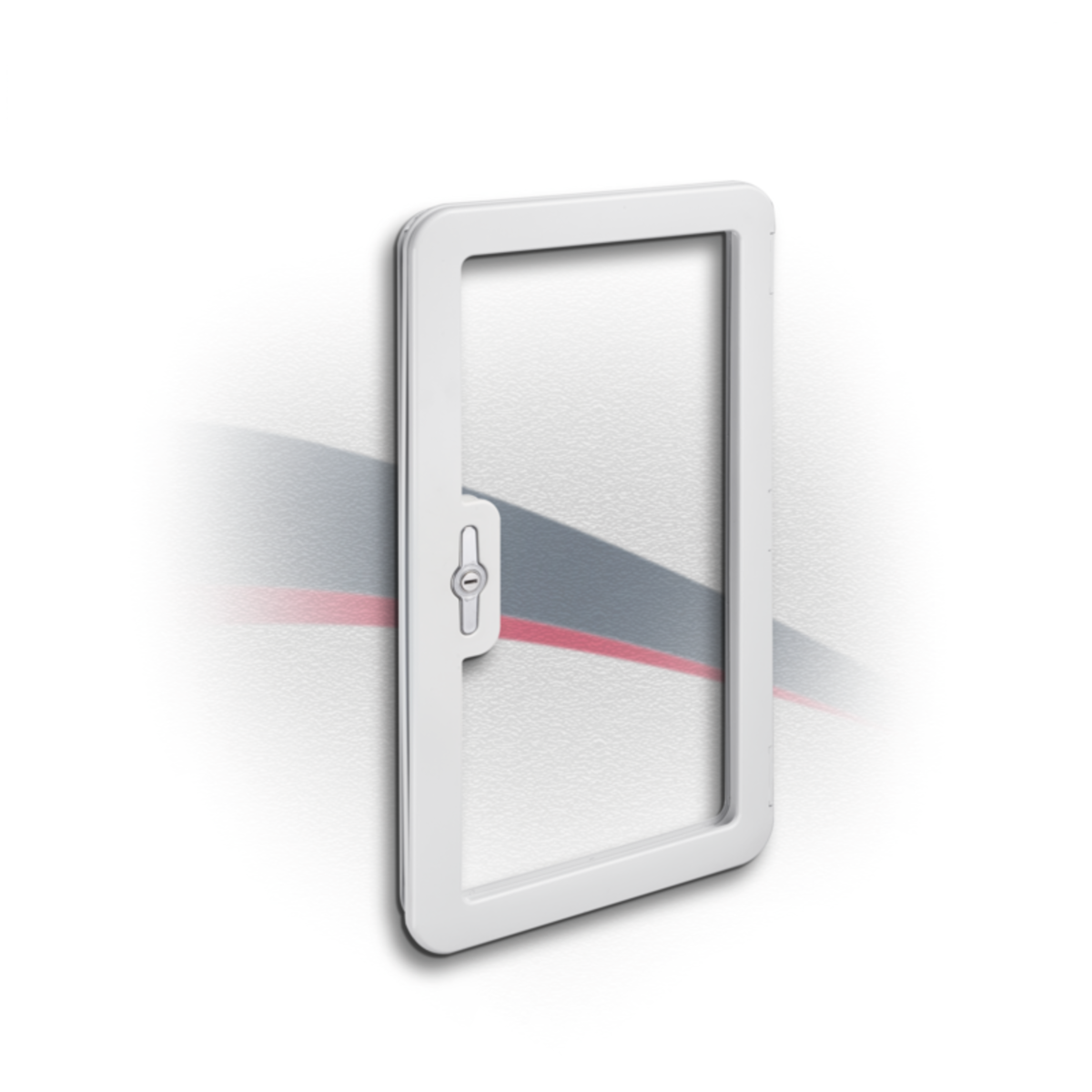

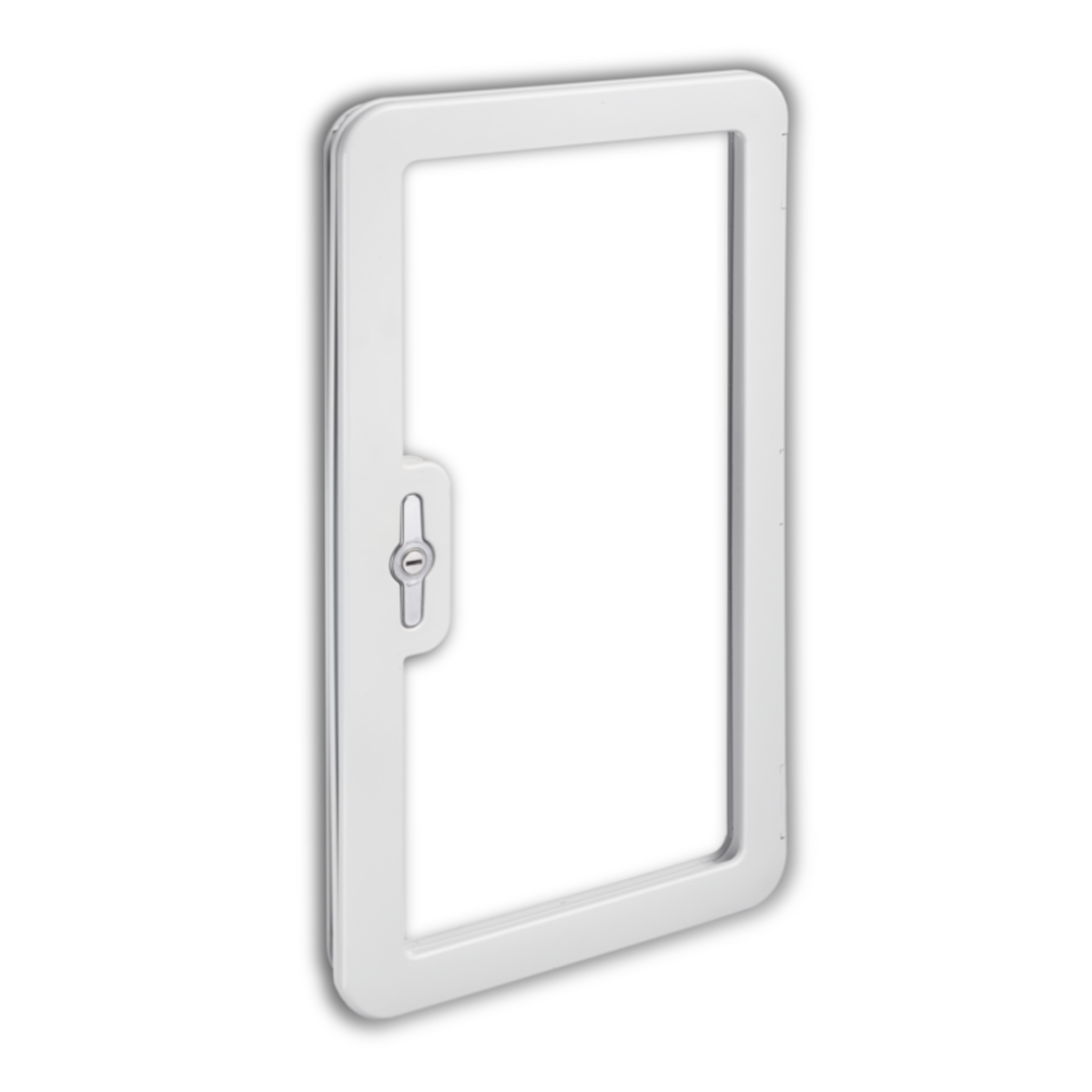

Dometic Sk 5

Service Hatch, 650 X 350 Mm

Designed to blend in with the exterior of motorhomes and caravans, this sleek service hatch features integrated ventilation for your Dometic cassette toilet. Installation is quick and easy without the need for screws. It comes complete with a secure multi-point locking and closing system.

Sku no: 9104100203

All the products you select with the Get An Offer button will be collected in the same basket.

...AND MORE

Quick and easy installation without the need for screws
Can be fitted vertically or horizontally
Features a secure multi-point locking and closing system
Service hatch with integrated ventilation for the Dometic cassette toilet
Designed to blend in with the exterior of vehicle

TECHNICAL FEATURES

Dimensions

Cut Out Height
348.00 mm

Cut Out Width
648.00 mm

Dimensions Opening Height
326 mm

Dimensions Opening Width
625 mm

Dimensions Ordered Height
350 mm

Dimensions Ordered Width
650 mm

Dimensions Product Height
373 mm

Dimensions Product Width
673 mm

Net Weight
1.30 kg

Possible Material Thickness 1 Max
36 mm

Possible Material Thickness 1 Min
23 mm

Standard Mount. Material Thickness 1 Max
36 mm

Standard Mount. Material Thickness 1 Min
23 mm

General

Model
Locker doors

Model On Label
Sk5 service hatch art1412

Product Description
Service hatch, 650 x 350 mm

Scope Of Delivery
Service hatch with manual in box

Sku Number
9104100203

Installation

Cut Out Height
348.00 mm

Cut Out Width
648.00 mm

Logistics

Dimensions Parcel Depth
710 mm

Dimensions Parcel Height
126 mm

Dimensions Parcel Width
430 mm

Ean-13
4015704160246

Parcel Weight
2.19 kg

DOCUMENTS

DOWNLOAD

Installation & Operating Manual - EN - installation-and-operating-manual-52106.pdf
