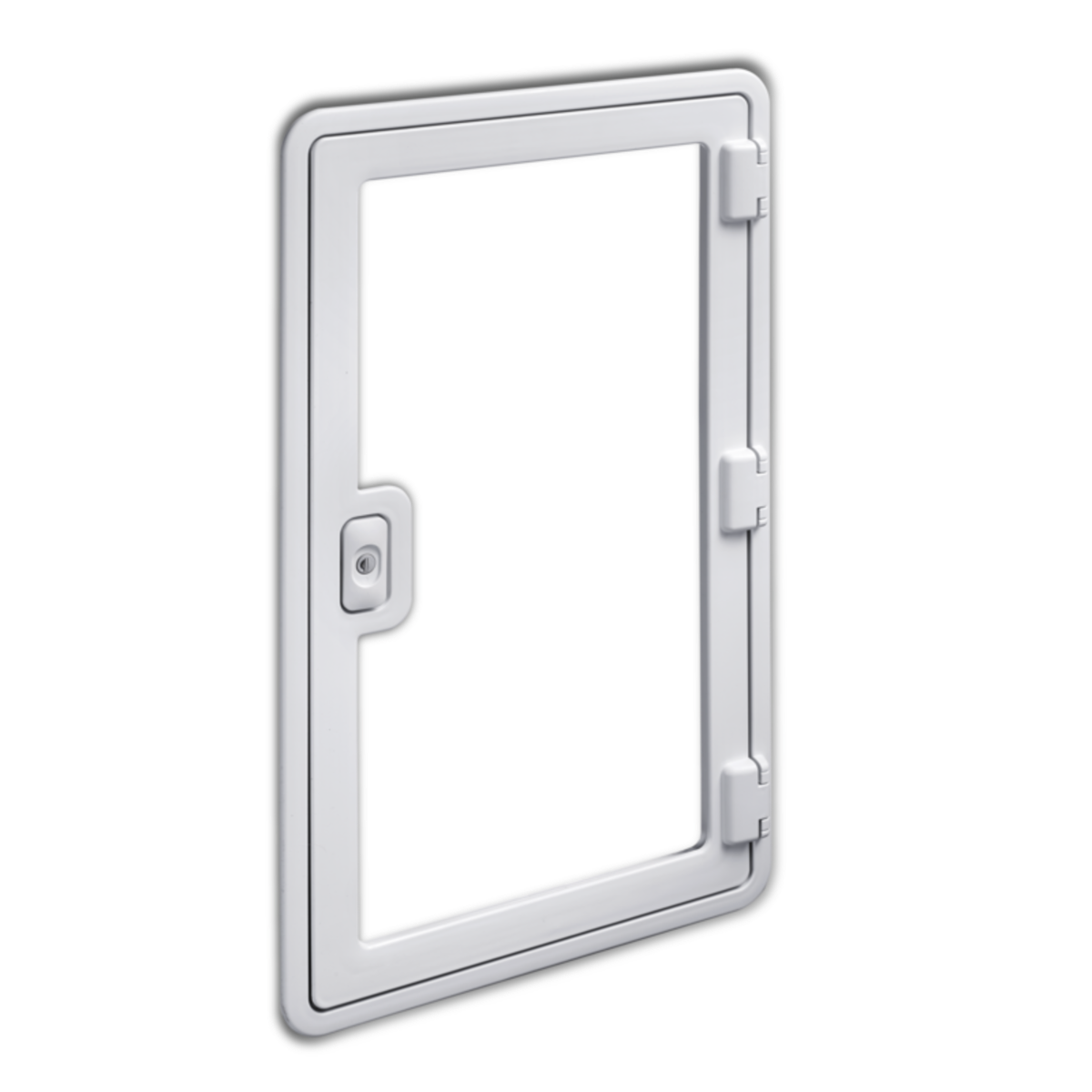

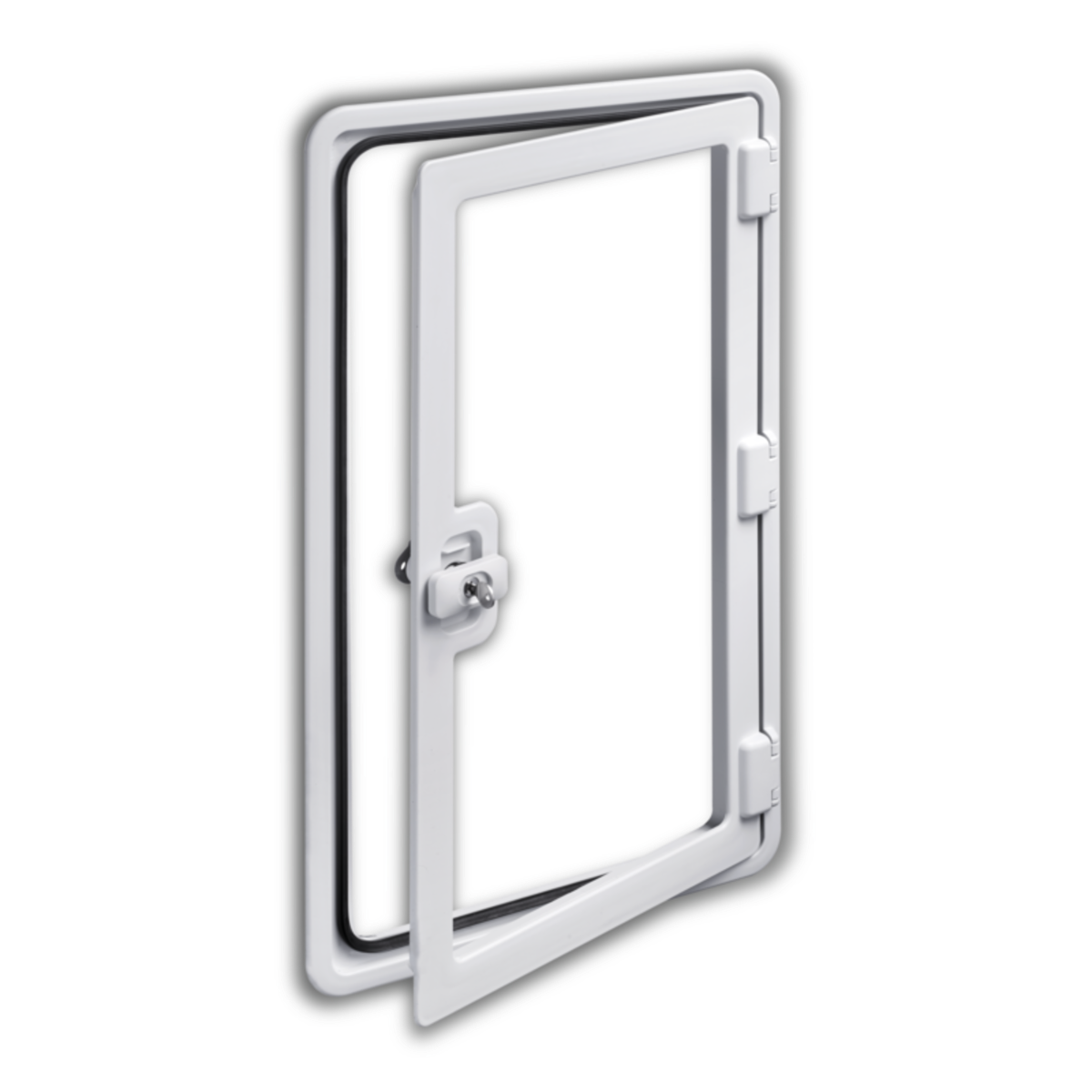

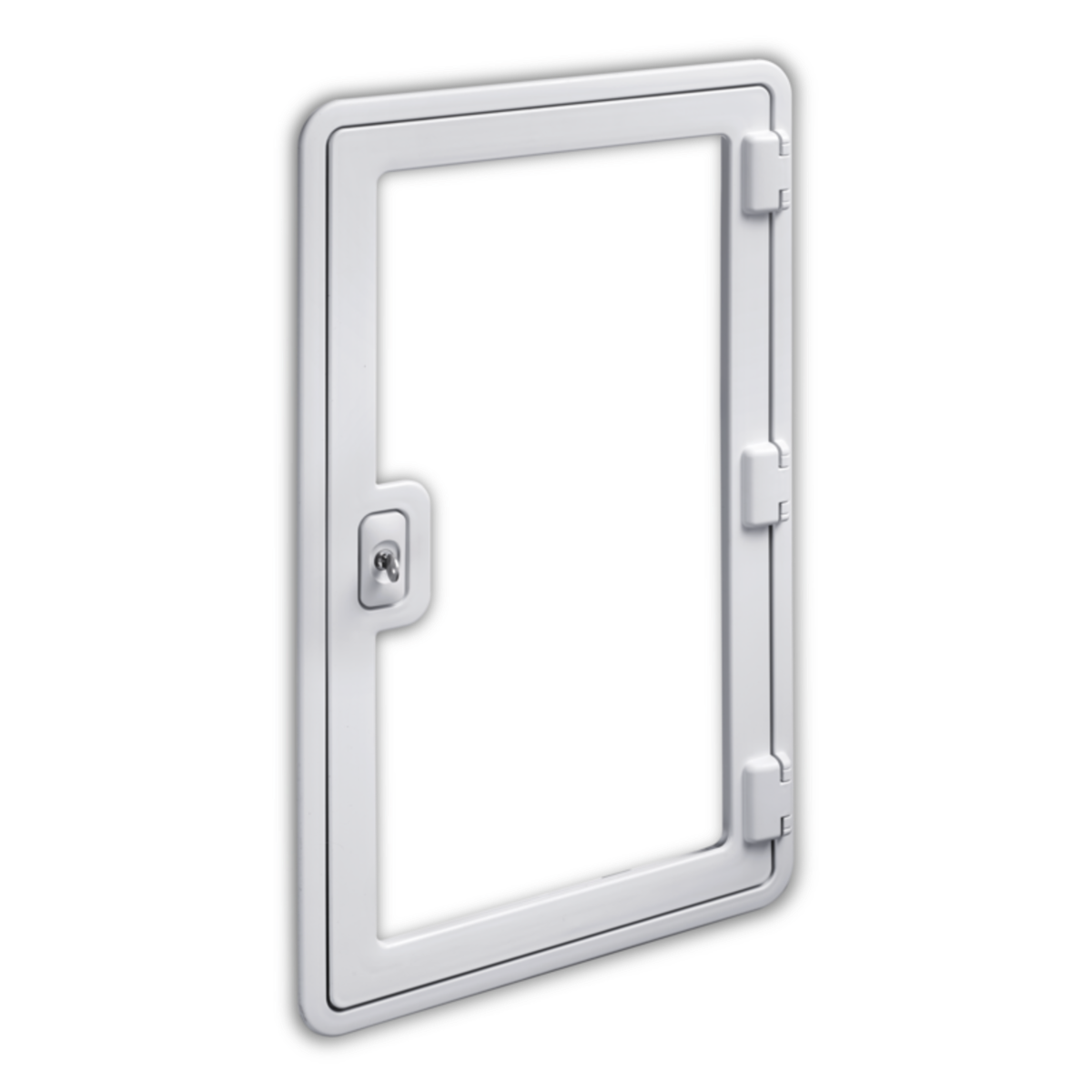

Dometic Sk 4

Service Hatch, 1000 X 305 Mm

Made from weatherproof ASA, this neat service hatch, which can be installed horizontally or vertically, is conveniently clipped into the opening on your vehicle without screws. It comes complete with a secure multi-point locking and closing system.

Sku no: 9104100200

All the products you select with the Get An Offer button will be collected in the same basket.

...AND MORE

Durable service hatch made from spray cast ASA
Quick and easy installation without the need for screws
Can be fitted vertically or horizontally
Features a secure multi-point locking and closing system

TECHNICAL FEATURES

Dimensions

Cut Out Height
305.00 mm

Cut Out Width
1000.00 mm

Dimensions Opening Height
265 mm

Dimensions Opening Width
960 mm

Dimensions Ordered Height
305 mm

Dimensions Ordered Width
1000 mm

Dimensions Product Height
338 mm

Dimensions Product Width
1034 mm

Net Weight
2 kg

Possible Material Thickness 1 Max
42 mm

Possible Material Thickness 1 Min
23 mm

General

Model
Locker doors

Model On Label
Sk4 service hatch art.1121

Product Description
Service hatch, 1000 x 305 mm

Scope Of Delivery
Service hatch with manual in box

Sku Number
9104100200

Installation

Cut Out Height
305.00 mm

Cut Out Width
1000.00 mm

Logistics

Dimensions Parcel Depth
1120 mm

Dimensions Parcel Height
120 mm

Dimensions Parcel Width
400 mm

Ean-13
4015704183900

Parcel Weight
3.60 kg

DOCUMENTS

DOWNLOAD

Installation & Operating Manual - EN - installation-and-operating-manual-52093.pdf
