Dometic Mcs T6
Marine Climate System, 6,000 Btu/H, 1130 W
Cool, heat and dehumidify with one neat, little and easy-to-fit unit. Allowing you to create the perfect climate on yachts and boats!Gallery Features
Convenient control
Easy-to-use control panel to ensure optimal temperatures at the touch of a button
Filter
Integrated and easy to clean filter
...AND MORE
- Cooling capacity 6000 BTU/h; heating capacity 1750 W
- Consumption (at 230 V): 890 W/1130 W
- Reliable comfort thanks to versatile functions: heat, cool and dehumidify
- Designed for fast, easy retrofitting
- Made from high quality corrosion-resistant materials
- All installation components included
- Ultra compact design for neat, unobtrusive fit
TECHNICAL FEATURES
Additional
Thermostat Control
Electronic thermostat
Thermostat Control
Electronic thermostat
Dimensions
Dimensions Product Depth
271.78 mm
Dimensions Product Height
281.94 mm
Dimensions Product Width
447.04 mm
Net Weight
19.3 kg
Dimensions Product Depth
271.78 mm
Dimensions Product Height
281.94 mm
Dimensions Product Width
447.04 mm
Net Weight
19.3 kg
Electrical
Input Frequency
50 hz
Input Voltage (Ac)
230 v
Required Ac Circuit Protection Max
10.00 a
Required Ac Circuit Protection Min
6.00 a
Starting Current - Max
18.70 a
Input Frequency
50 hz
Input Voltage (Ac)
230 v
Required Ac Circuit Protection Max
10.00 a
Required Ac Circuit Protection Min
6.00 a
Starting Current - Max
18.70 a
General
Model
Mcs t6
Product Description
Marine climate system, 6,000 btu/h, 1130 w
Scope Of Delivery

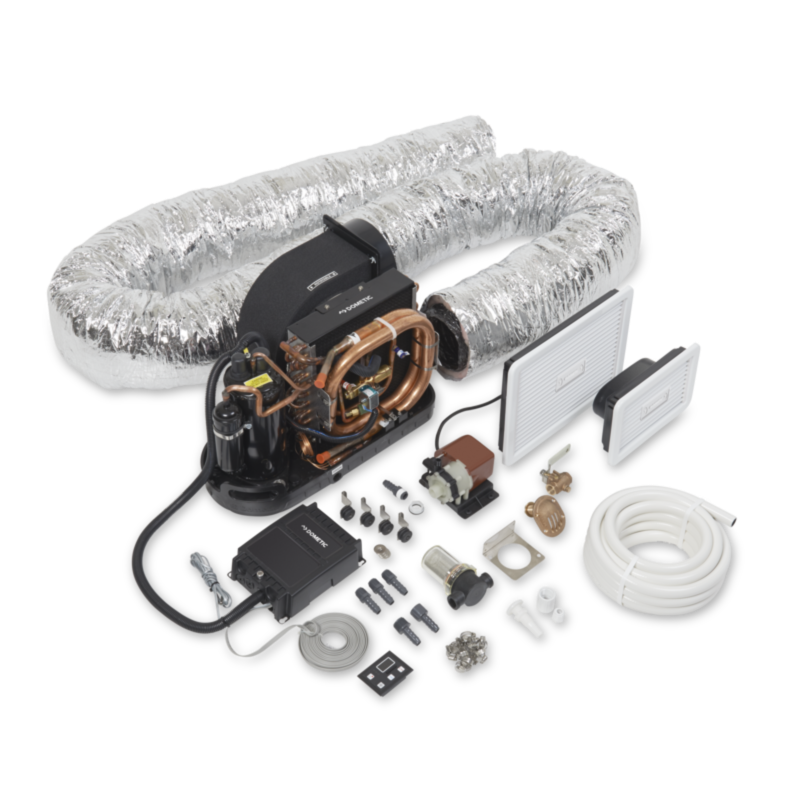

A/c unit, electrical box and control panel, seawater pump, seawater strainer, air ducts, supply-air and return-air grilles,seawater hose, through-hull fittings, fixing material, fittings, valves
Sku Number
9600000549
Model
Mcs t6
Product Description
Marine climate system, 6,000 btu/h, 1130 w
Scope Of Delivery
A/c unit, electrical box and control panel, seawater pump, seawater strainer, air ducts, supply-air and return-air grilles,seawater hose, through-hull fittings, fixing material, fittings, valves
Sku Number
9600000549
Logistics
Dimensions Parcel Depth
381 mm
Dimensions Parcel Height
254 mm
Dimensions Parcel Width
558.8 mm
Ean-13
7042284500091
Parcel Weight
22.79 kg
Dimensions Parcel Depth
381 mm
Dimensions Parcel Height
254 mm
Dimensions Parcel Width
558.8 mm
Ean-13
7042284500091
Parcel Weight
22.79 kg
Performance
-
Contains fluorinated greenhouse gases
Co2 Equivalent
0,503 t
Cooling Capacity (Iso 5151)
1758.43 w
Current Consumption Max Cooling
3.70 a
Current Consumption Max Heating
4.70 a
Current Consumption Min Cooling
3.70 a
Current Consumption Min Heating
4.70 a
Gwp
2088
Number Of Blower Speeds
6/automatic
Power Consumption - Cooling Mode (Iso 5151)
890 w
Refrigerant Amount
240.97 g
Refrigerant, Type
R410a
Temperature Range
18°c to 30°c
-
Contains fluorinated greenhouse gases
Co2 Equivalent
0,503 t
Cooling Capacity (Iso 5151)
1758.43 w
Current Consumption Max Cooling
3.70 a
Current Consumption Max Heating
4.70 a
Current Consumption Min Cooling
3.70 a
Current Consumption Min Heating
4.70 a
Gwp
2088
Number Of Blower Speeds
6/automatic
Power Consumption - Cooling Mode (Iso 5151)
890 w
Refrigerant Amount
240.97 g
Refrigerant, Type
R410a
Temperature Range
18°c to 30°c
