Gallery Features
Control panel
Easy-to-use control panel to ensure optimal temperatures at the touch of a button
Filter
Integrated and easy to clean filter
...AND MORE
- Reliable comfort thanks to versatile functions: heat, cool and dehumidify
- Designed for fast, easy retrofitting
- Made from high quality corrosion-resistant materials
- All installation components included
- Ultra compact design for neat, unobtrusive fit
- Cooling capacity 12 000 BTU/h; heating capacity 3500 W
- Consumption (at 230 V): 1030 W/1270 W
TECHNICAL FEATURES
Additional
Thermostat Control
Electronic thermostat
Thermostat Control
Electronic thermostat
Dimensions
Dimensions Product Depth
315 mm
Dimensions Product Height
318 mm
Dimensions Product Width
519 mm
Net Weight
23.6 kg
Dimensions Product Depth
315 mm
Dimensions Product Height
318 mm
Dimensions Product Width
519 mm
Net Weight
23.6 kg
Electrical
Input Frequency
50 hz
Input Voltage (Ac)
230 v
Required Ac Circuit Protection Max
10.00 a
Required Ac Circuit Protection Min
8.00 a
Starting Current - Max
22.00 a
Input Frequency
50 hz
Input Voltage (Ac)
230 v
Required Ac Circuit Protection Max
10.00 a
Required Ac Circuit Protection Min
8.00 a
Starting Current - Max
22.00 a
General
Model
Mcs t12
Product Description
Marine climate system, 12,000 btu/h, 3500 w
Scope Of Delivery

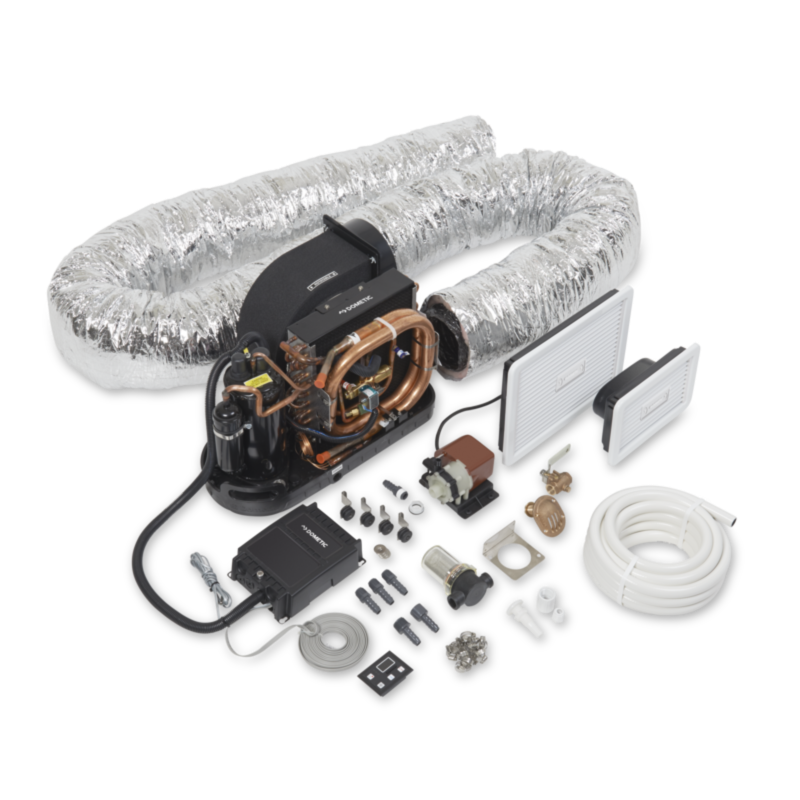

A/c unit, electrical box and control panel, seawater pump, seawater strainer, air ducts, supply-air and return-air grilles,seawater hose, through-hull fittings, fixing material, fittings, valves
Sku Number
9600000550
Model
Mcs t12
Product Description
Marine climate system, 12,000 btu/h, 3500 w
Scope Of Delivery
A/c unit, electrical box and control panel, seawater pump, seawater strainer, air ducts, supply-air and return-air grilles,seawater hose, through-hull fittings, fixing material, fittings, valves
Sku Number
9600000550
Logistics
Dimensions Parcel Depth
635 mm
Dimensions Parcel Height
711 mm
Dimensions Parcel Width
559 mm
Ean-13
4015704260410
Parcel Weight
27.68 kg
Dimensions Parcel Depth
635 mm
Dimensions Parcel Height
711 mm
Dimensions Parcel Width
559 mm
Ean-13
4015704260410
Parcel Weight
27.68 kg
Performance
-
Contains fluorinated greenhouse gases
Co2 Equivalent
0,681 t
Cooling Capacity (Iso 5151)
3516.85 w
Current Consumption Max Cooling
4.30 a
Current Consumption Max Heating
5.30 a
Current Consumption Min Cooling
4.30 a
Current Consumption Min Heating
5.30 a
Gwp
2088
Number Of Blower Speeds
6/automatic
Power Consumption - Cooling Mode (Iso 5151)
1030 w
Refrigerant Amount
326.02 g
Refrigerant, Type
R410a
Temperature Range
18°c to 30°c
-
Contains fluorinated greenhouse gases
Co2 Equivalent
0,681 t
Cooling Capacity (Iso 5151)
3516.85 w
Current Consumption Max Cooling
4.30 a
Current Consumption Max Heating
5.30 a
Current Consumption Min Cooling
4.30 a
Current Consumption Min Heating
5.30 a
Gwp
2088
Number Of Blower Speeds
6/automatic
Power Consumption - Cooling Mode (Iso 5151)
1030 w
Refrigerant Amount
326.02 g
Refrigerant, Type
R410a
Temperature Range
18°c to 30°c
