Dometic Mcs T16

Marine Climate System, 16,000 Btu/H, 4700 W

Cool, heat and dehumidify with one neat little easy-to-fit unit and ensure the perfect climate on board yachts and boats.

Sku no: 9600000551

All the products you select with the Get An Offer button will be collected in the same basket.

Gallery Features

Convenient control

Easy-to-use control panel to ensure optimal temperatures at the touch of a button

Filter

Integrated and easy to clean filter

...AND MORE

Reliable comfort thanks to versatile functions: heat, cool and dehumidify
Designed for fast, easy retrofitting
Made from high quality corrosion-resistant materials
All installation components included
Ultra compact design for neat, unobtrusive fit
Cooling capacity 16 000 BTU/h; heating capacity 4700 W
Consumption (at 230 V): 1320 W/1660 W

TECHNICAL FEATURES

Additional

Thermostat Control
Electronic thermostat

Dimensions

Dimensions Product Depth
338 mm

Dimensions Product Height
341 mm

Dimensions Product Width
544 mm

Net Weight
26.50 kg

Electrical

Input Frequency
50 hz

Input Voltage (Ac)
230 v

Required Ac Circuit Protection Max
15.00 a

Required Ac Circuit Protection Min
11.00 a

Starting Current - Max
23.00 a

General

Model
Mcs t16

Product Description
Marine climate system, 16,000 btu/h, 4700 w

Scope Of Delivery

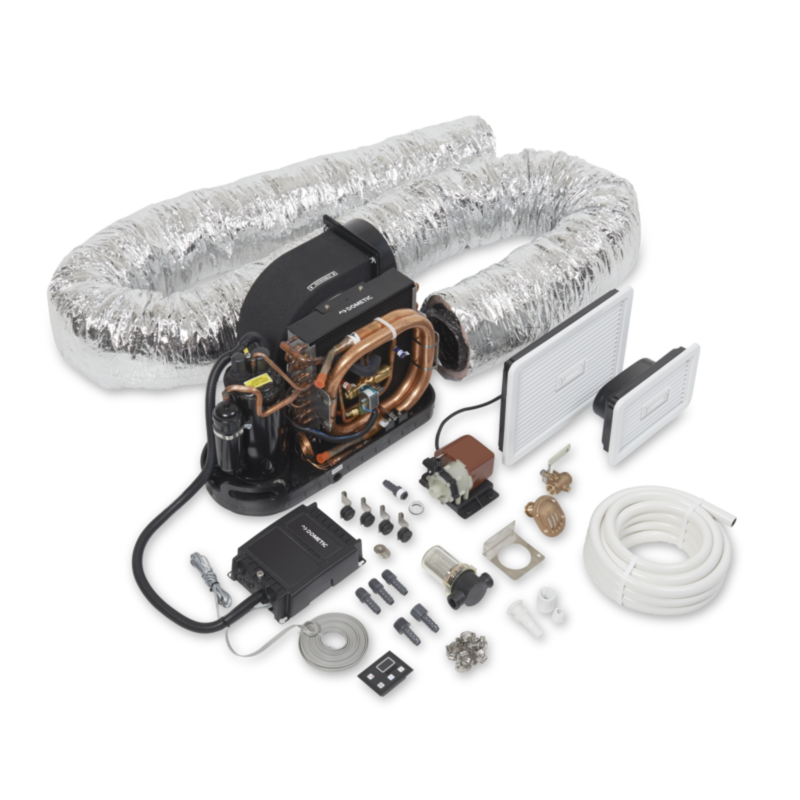

A/c unit, electrical box and control panel, seawater pump, seawater strainer, air ducts, supply-air and return-air grilles,seawater hose, through-hull fittings, fixing material, fittings, valves

Sku Number
9600000551

Logistics

Dimensions Parcel Depth
635 mm

Dimensions Parcel Height
711 mm

Dimensions Parcel Width
559 mm

Ean-13
4015704260427

Parcel Weight
30.73 kg

Performance

-
Contains fluorinated greenhouse gases

Co2 Equivalent
0,799 t

Cooling Capacity (Iso 5151)
4689.14 w

Current Consumption Max Cooling
5.50 a

Current Consumption Max Heating
6.90 a

Current Consumption Min Cooling
5.50 a

Current Consumption Min Heating
6.90 a

Gwp
2088

Number Of Blower Speeds
6/automatic

Power Consumption - Cooling Mode (Iso 5151)
1320 w

Refrigerant Amount
382.72 g

Refrigerant, Type
R410a

Temperature Range
18°c to 30°c

DOCUMENTS

DOWNLOAD

Installation Manual - EN - installation-manual-54129.pdf

Installation Manual - EN - operating-manual-54132.pdf
