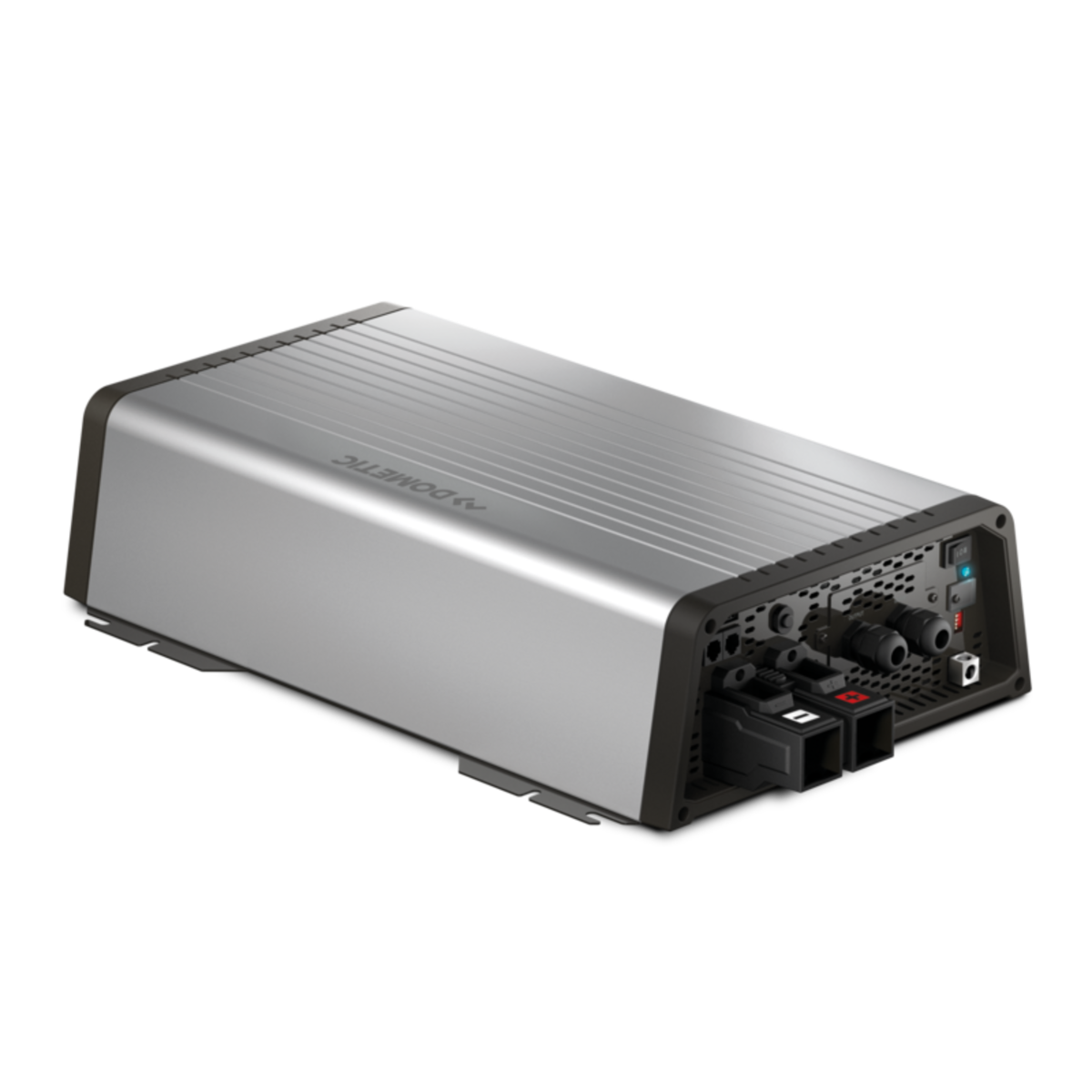

Dometic Sinepower Dsp 3512T
Comfort Sine Wave Inverter, 3500 W, 12 V
Designed to turn 12 V battery power into pure 230 V AC, this comfort sine wave inverter ensures reliable operation of electric devices up to 2300 W from the vehicle battery. Special highlights of this top-of-the-range product are battery-saving mains priority circuit and an energy-saving Smart Standby mode. Combine the inverter with an elegant control panel for convenient operation and a perfect overview.Gallery Features
New user interface
Attractive design, easy to use and control
...AND MORE
- New Smart Standby mode saves energy when the device is not needed
- Pure sine wave 230 V AC output voltage is suitable for sensitive electronic devices
- Wide DC input voltage range – ideal for vehicles with EURO 6 emission standard
- New user interface for easy operation and control
- CI-Bus compatible – easy to include in the vehicle grid
- Integrated mains priority circuit with voltage synchronization
TECHNICAL FEATURES
Dimensions
Dimensions Product Depth
490 mm
Dimensions Product Height
122 mm
Dimensions Product Width
324 mm
Net Weight
10.90 kg
Dimensions Product Depth
490 mm
Dimensions Product Height
122 mm
Dimensions Product Width
324 mm
Net Weight
10.90 kg
Electrical
Current Consumption - Standby Mode
200 ma
Current Consumption - Zero Load
3,6 a
Input Voltage (Dc)
12 v
Output Voltage
230 v
Current Consumption - Standby Mode
200 ma
Current Consumption - Zero Load
3,6 a
Input Voltage (Dc)
12 v
Output Voltage
230 v
General
Model
Dsp3512t
Product Description
Comfort sine wave inverter, 3500 w, 12 v
Sku Number
9600002557
Model
Dsp3512t
Product Description
Comfort sine wave inverter, 3500 w, 12 v
Sku Number
9600002557
Logistics
Dimensions Parcel Depth
643 mm
Dimensions Parcel Height
220 mm
Dimensions Parcel Width
418 mm
Ean-13
4015704263879
Parcel Weight
12.20 kg
Dimensions Parcel Depth
643 mm
Dimensions Parcel Height
220 mm
Dimensions Parcel Width
418 mm
Ean-13
4015704263879
Parcel Weight
12.20 kg
Performance
Continuous Power 25°C
3500.00 w
Energy Efficiency
>89% %
Operating Temperature Max
60.00 °c
Operating Temperature Min
-20.00 °c
Continuous Power 25°C
3500.00 w
Energy Efficiency
>89% %
Operating Temperature Max
60.00 °c
Operating Temperature Min
-20.00 °c
