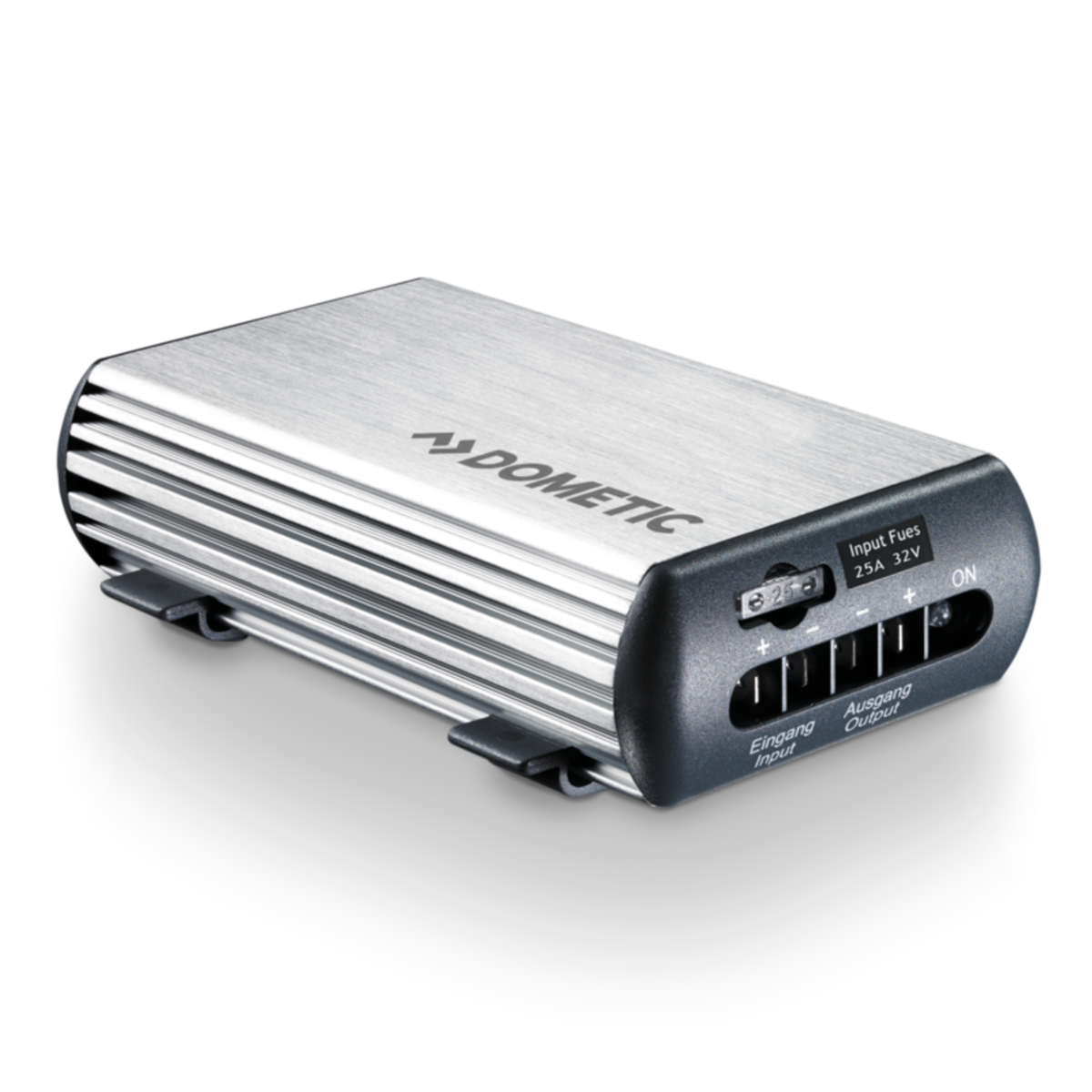

Dometic Perfectcharge Dcdc 24
Voltage Converter, 24 A, 24 V To 12 V
This inexpensive, ultra-compact converter was designed for running standard 12 V DC appliances on 24 V DC. It is a good choice if you want to connect a 12 V comfort gadget to the 24 V battery of your vehicle. For sensitive electronic devices, use a higher quality converter with electronically contolled output voltage.
...AND MORE
- Lightweight
- Inexpensive and ultra-compact
- High energy efficiency (up to 90 %)
- Easy to install with clip-on system
- Switch mode design for running 24 V DC devices on 12 V DC
- Low heat output
- e-approved (Automotive EMC Directive)
TECHNICAL FEATURES
Dimensions
Dimensions Product Depth
158 mm
Dimensions Product Height
47 mm
Dimensions Product Width
106 mm
Net Weight
0.7 kg
Dimensions Product Depth
158 mm
Dimensions Product Height
47 mm
Dimensions Product Width
106 mm
Net Weight
0.7 kg
Electrical
Current Consumption - Standby Mode
8 ma
Input Voltage (Dc)
24 v
Ip Class
Ip20
Output Current
24.00 a
Current Consumption - Standby Mode
8 ma
Input Voltage (Dc)
24 v
Ip Class
Ip20
Output Current
24.00 a
General
Model
Dc
Product Description
Voltage converter, 24 a, 24 v to 12 v
Scope Of Delivery
Converter
Sku Number
9600000040
Model
Dc
Product Description
Voltage converter, 24 a, 24 v to 12 v
Scope Of Delivery
Converter
Sku Number
9600000040
Logistics
Dimensions Parcel Depth
107 mm
Dimensions Parcel Height
187 mm
Dimensions Parcel Width
57 mm
Ean-13
4015704250442
Parcel Weight
0.70 kg
Dimensions Parcel Depth
107 mm
Dimensions Parcel Height
187 mm
Dimensions Parcel Width
57 mm
Ean-13
4015704250442
Parcel Weight
0.70 kg
Performance
Continuous Power 25°C
335.00 w
Energy Efficiency
≤90 %
Operating Temperature Max
40.00 °c
Operating Temperature Min
0.00 °c
Continuous Power 25°C
335.00 w
Energy Efficiency
≤90 %
Operating Temperature Max
40.00 °c
Operating Temperature Min
0.00 °c
