For large families, friends and everyone who likes to share: Our BOXSTAR 600 XL high‐roof models! The high‐roof construction with additional GRP roof structure offers a gigantic amount of space with an interior height of up to 238 cm. Thanks to the smooth‐running high‐roof bed with one‐hand operation, you have two separate and particularly comfortable sleeping areas.
- The practical high roof in KNAUS quality: dynamic design, distinctive lines and progressive labelling.

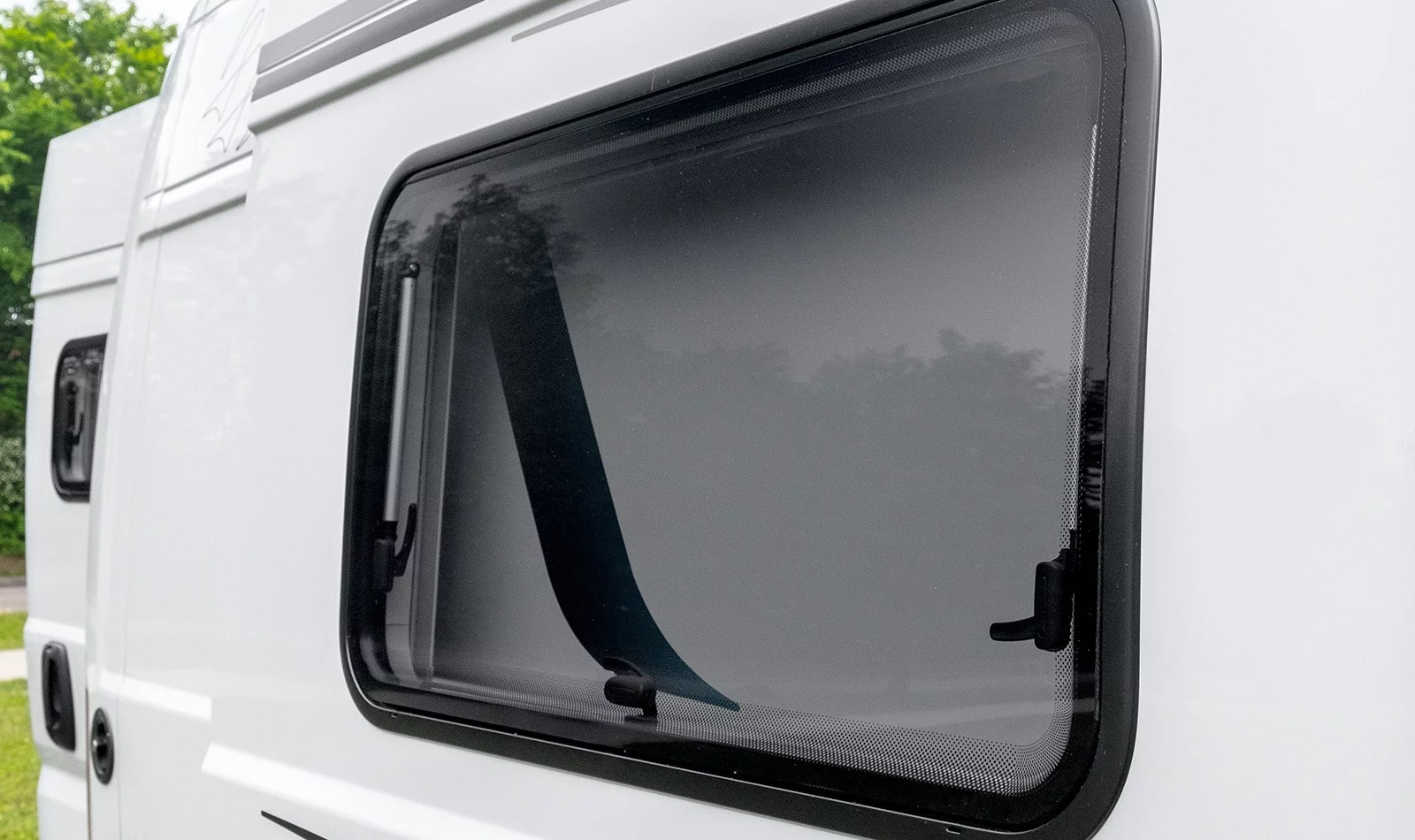

- The high‐quality Seitz windows are flush‐mounted into the body of the vehicle, for more efficiency and style.

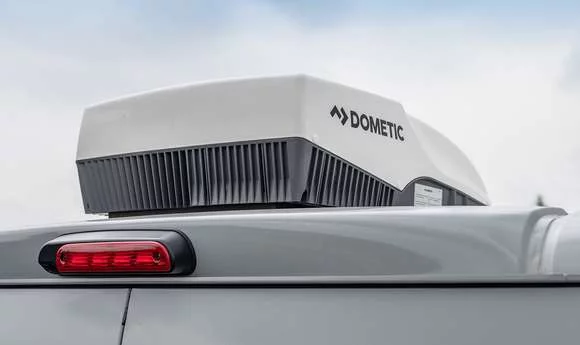

- Goodbye, heat: The optional Dometic Freshjet 2000 (OEM) climate control system enables you to keep your cool on those long hot summer days.
- Harmonious overall image: The exclusive 17“ KNAUS alloy wheels and the dynamic foil graphics fit together perfectly.

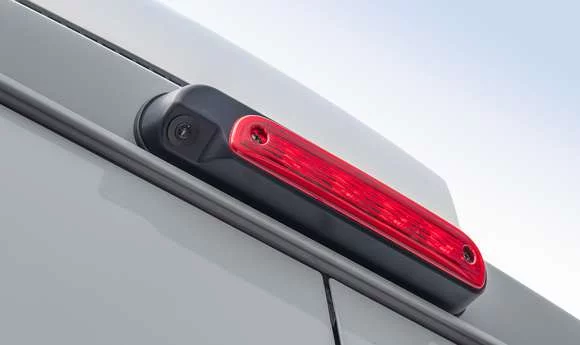

- Comfortable and safe parking, thanks to the optional rear‐view camera.

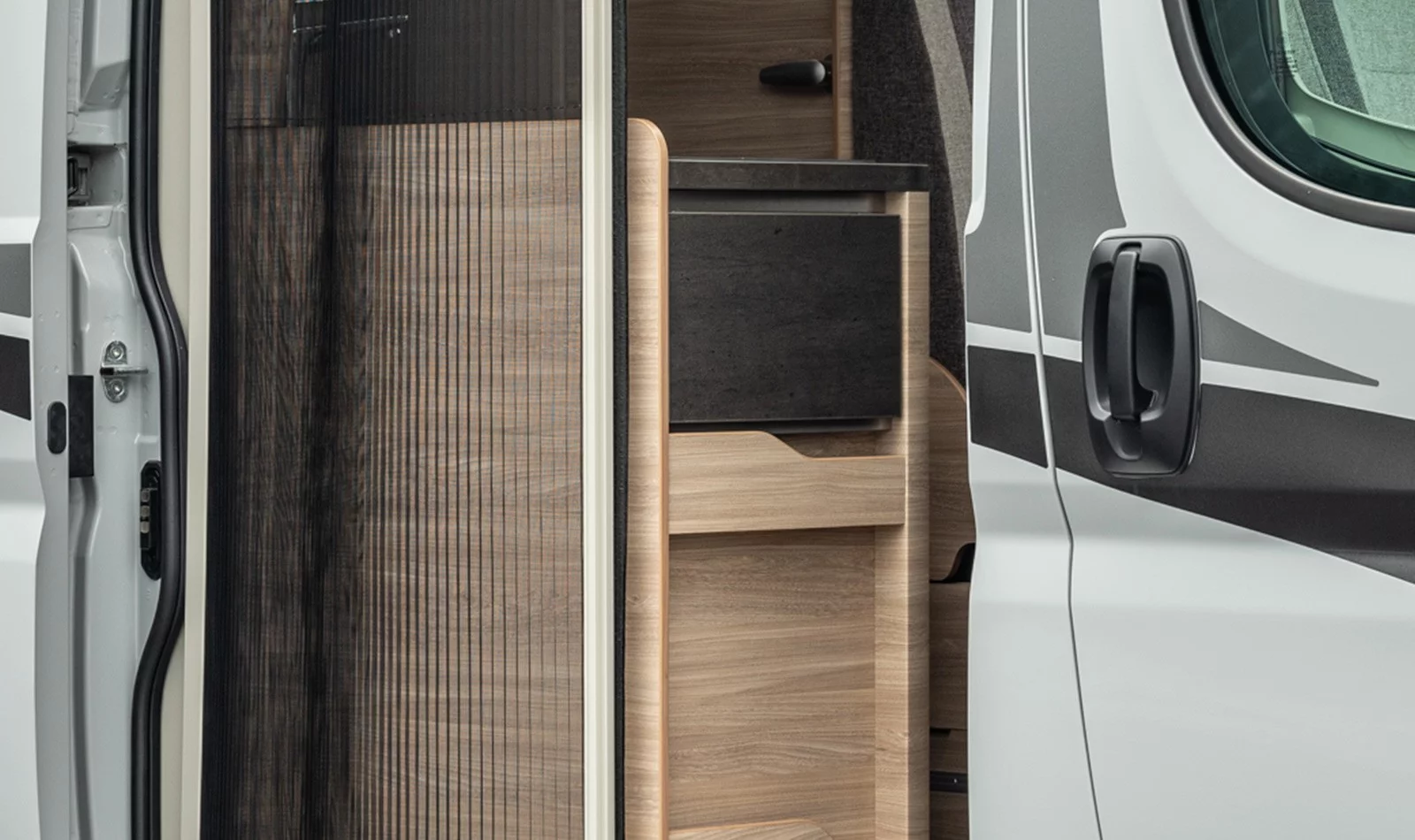

- No need to worry about uninvited guests thanks to the screen door
- For safety, the electric side step automatically retracts if it has been forgotten.
- Easy to access: The gas bottle at the rear with a large access door.
- The integrated rain gutter with LED lighting ensures good visibility in poor light, and a dry entrance/exit.
- In our BOXSTAR XL high roof models, the optional panoramic roof and hinged window at the rear allow plenty of extra light inside.

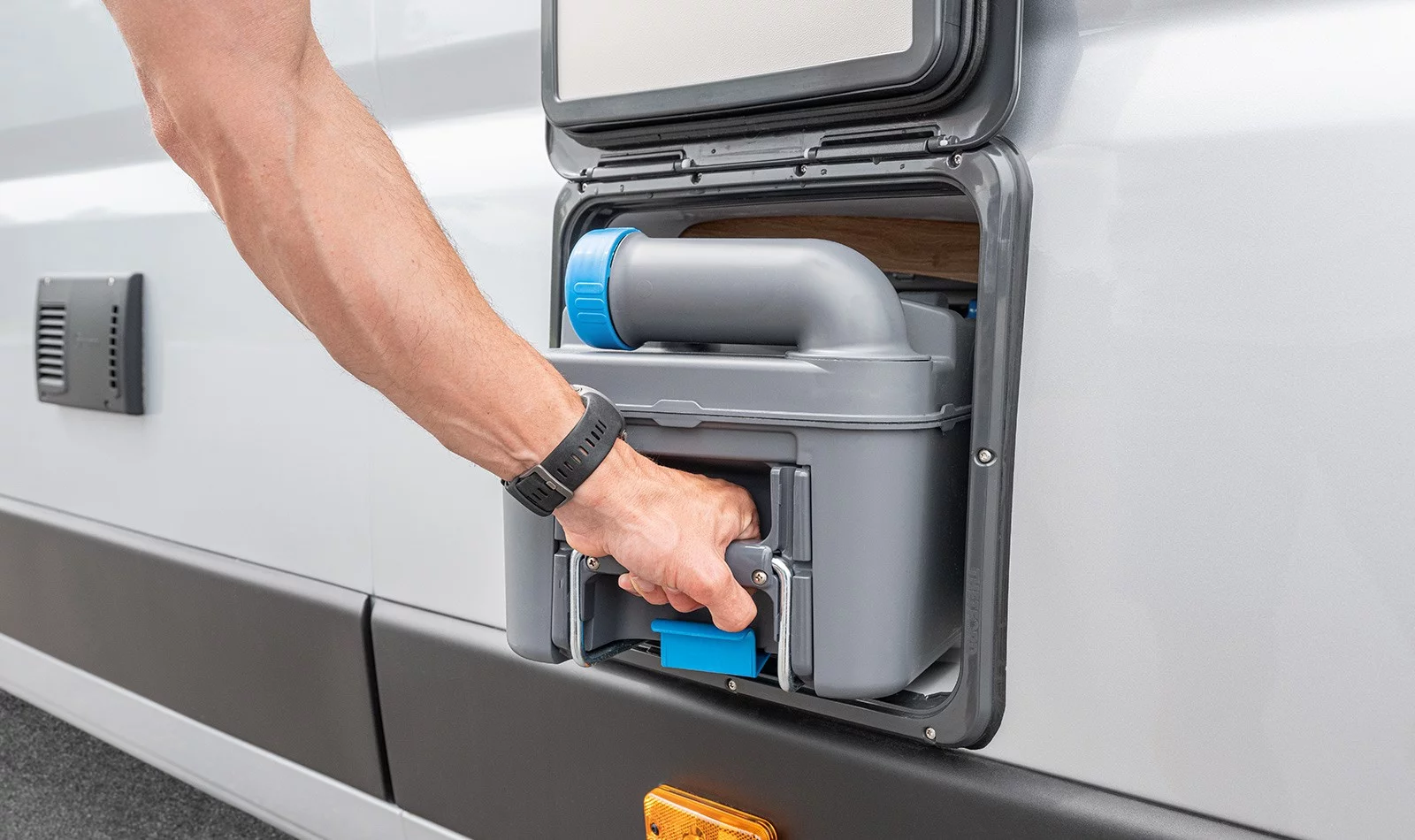

- The toilet cassette is accessed via the sidewall door making it easy to empty.
| Basic Equipment | |
|---|---|
| Total length (cm) | 599 |
| Width (outside) (cm) | 205 |
| Width (inside) (cm) | 187 |
| Height (outside) (cm) | 312 |
| Height (inside) (cm) | 238 |
| Effective vehicle mass including legally required basic equipment (kg) | 2920 |
| Technically maximum authorised laden mass (kg) | 3500 |
| Maximum payload (kg) | 580 |
| Towing load (kg) | 2500 |
| Wheelbase (cm) | 403 |
| Tyre size | – |
| Beds (Note: H141) | 5 |
| Max. number of beds (Note: H142) | 5 |
| Number of persons allowed in driving operation | 4 |
| Automatic three-point belts, height-adjustable | 2 |
| Max. belt-secured seats | 4 |
| Body | |
|---|---|
| Total number of hinged windows | 7 |
| Wall thickness, floor (mm) | 25 |
| Living Area | |
|---|---|
| Three-point belts in driving direction | 2 |
| Bed size, rear lateral beds with single-piece slatted frame with compact bathroom (cm) | 194 x 145/140 |
| Bed size, rear lateral beds with single-piece slatted frame with separate bathroom, optional (cm) | 194 x 145/140 |
| Bed size, rear longitudinal bed with compact bathroom (cm) | – |
| Bed size, rear longitudinal bed with separate bathroom, optional (cm) | – |
| Bed size, spare bed on semi-dinette and driver's seat (cm) | 160 x 60 |
| Bed size, guest bed optional (cm) | 180 x 70 |
| Bed size, Classic lifting bed (cm) | – |
| Bed size, Vario lifting bed (cm) | – |
| Bed size, functional high-roof comfort bed (cm) | 207 x 130 |
| Water | |
|---|---|
| Waste water volume in liters | 90 |
| Fresh water volume in liters (Note: H711A,H712D) | 102 |
| Fresh water volume in liters (Note: H712A,H711A) | – |
| Kitchen | |
|---|---|
| Refrigerator (ltr.) | 90 |
| Electrical Supply | |
|---|---|
| Living area battery | 95 |
| Number of 12 V socket(s) | 1 |
| Number of 230 V socket(s) | 2 |
| Number of USB socket(s) | 2 |
| Motorisation / Drive / Gearing / Load Increase |
|---|
| FIAT Ducato 3,500 kg; 2.2 l 120 Multijet; front-wheel drive; Euro 6d-Final (88 kW/120 HP); 6-speed manual gearbox (Dependency: ABH18893) |
| 6-speed manual gearbox |
| Chassis / Climate Control / Multimedia |
|---|
| Rear/front axle stabiliser |
| Disk brakes |
| Left-hand drive |
| Chassis uni paint: White |
| High-roof paint: White |
| Black radiator grille, with chrome clasp |
| Front bumper grained, unpainted grey |
| 15" tyres (Dependent on layout) |
| Steel rims (Dependency: ABH6634) |
| Air conditioning in cab, manual including pollen filter and outside temperature display |
| Driver airbag |
| Passenger airbag |
| Driver's seat height adjustment |
| Cupholder in centre console |
| Original FIAT Captainchair seats with armrests |
| Cab seats swivelling |
| Seat box cladding for cab seats |
| Tempomat ® - Cruise Control |
| ESP |
| Hill Holder (Hill Start Assist) |
| ABS |
| Electronic immobiliser |
| Electromechanical power steering |
| Trailer Stability Control System |
| Post Collision Braking System |
| Crosswind Assist |
| Spare tyre |
| Fuel tank 75 ltr. |
| Car key with remote control for central locking for cab doors |
| Power windows (driver's and passenger's door) |
| Exterior mirrors manually adjustable |
| Daytime running light with series headlamps |
| Doors |
|---|
| Insect screen door |
| Sliding door with manual closing aid |
| Service Hatches / Garage Doors |
|---|
| KNAUS Technology module with supply installations |
| Gas locker for gas bottle reserves 2 x 11 kg (Dependent on layout) |
| Windows / Roof Hoods / Ventilation |
|---|
| Comfort roller blind system |
| Windows with safety lock |
| Frame window SEITZ S7P |

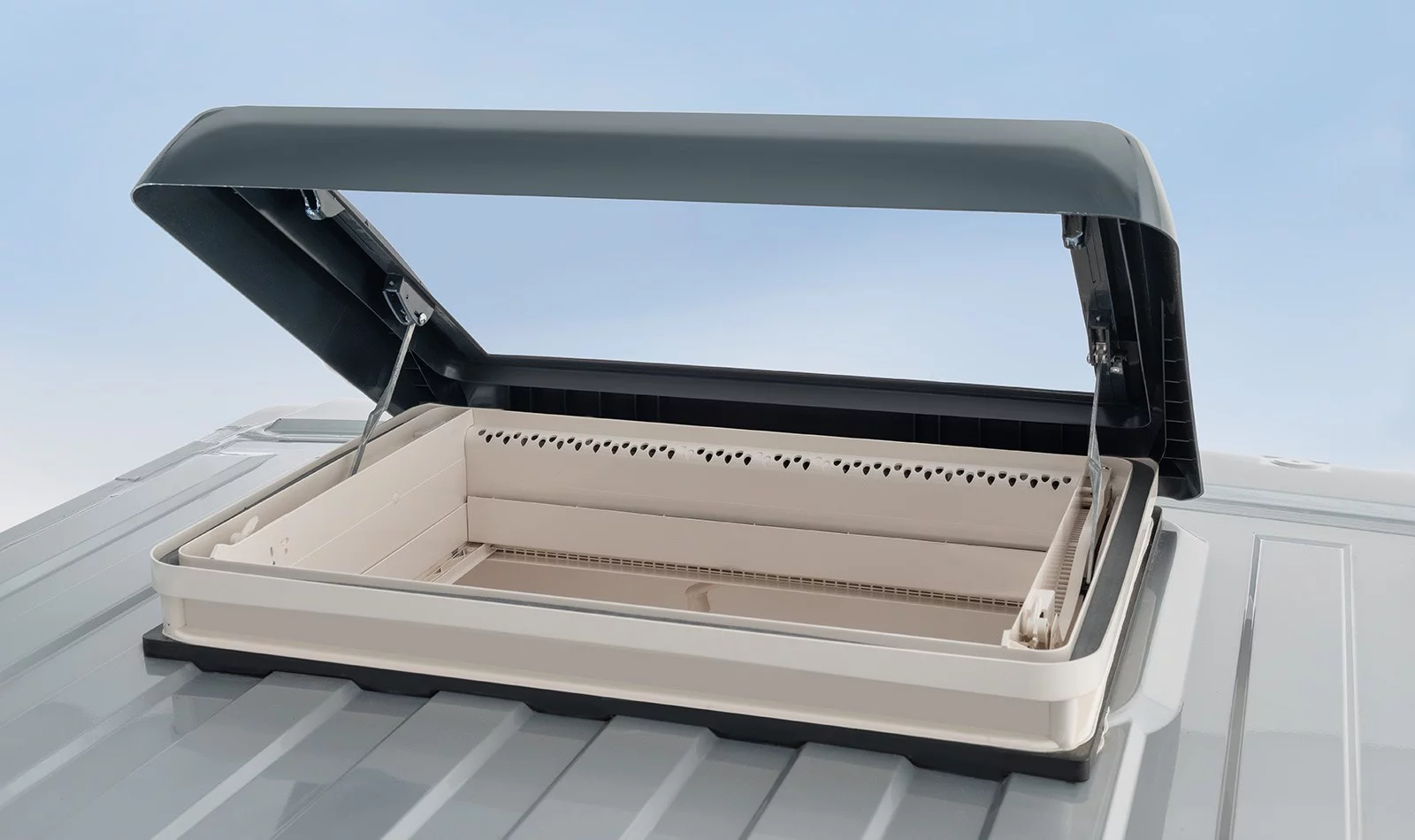

| Roof hood (lift-tilt) 70 x 50 cm with insect screen and blackout (bow) |
| Roof hood (lift-tilt) 70 x 50 cm with insect screen and blackout (rear) (Dependency: ABH6672) |
| Frame windows for rear doors |
| Hinged window 28 x 30 cm with insect screen and blackout, (toilet room) |
| Mushroom fan (toilet room) |
| Materials / Vehicle Graphics |
|---|
| Floor plate in sandwich construction |
| Breathable soft-touch side wall cladding |
| Temperature-controlled intermediate floor in seating group |
| Furniture / Surfaces |
|---|
| Furniture decor: Egmond Elm |
| Furniture construction in full carcase design with dowelling technology |
| Vertical furniture surfaces with ABS coating |
| Kitchen worktop and table in seating group in CPL (laminate) |
| Aluminium / rod profile with round edges |
| Furniture hinges with spring reinforcement |
| Drawers, hatches and doors flushly fitted in furniture body |
| Kitchen drawers with soft-close function and ball bearing mounted full extension |
| Ceiling cabinet hatch with handles, rocker arms and soft-close function |
| Living / Sleeping / Upholstery And Fabrics |
|---|
| Dinette seat extension through side pull-out (also while driving) |
| Floating dinette table, swivelling |
| ISOFIX system (2 child seats) |
| 2-layer cold foam mattresses with breathable and durable mattress cover |
| Rear lateral beds with full-size slatted frame (Dependent on layout) |
| Slatted frames incl. mattresses, stackable and removable |
| Conversion of seating group to guest bed (Note: H169) |
| Upholstery selection: TURIN (FIAT) |
| Kitchen / Bathroom |
|---|
| 2-burner cooker with glass cover, separate sink with cover in surface decor of the worktop (Dependency: ABH6696) |
| Gas control units centrally arranged |
| Compressor refrigerator 90 ltr. (incl. 7.5 ltr. freezer compartment), with night and silent mode (Dependent on layout) |
| Kitchen worktop with foldable extension |
| WC disposal tunnel with full cladding |
| Toilet / shower room with washstand, cassette toilet, sliding mirror and storage compartments |
| Compact bathroom with patented shower curtain (with air ring): Shower tray with at least 2 drains |
| Cassette toilet DOMETIC swivelling |
| Heating / Air Conditioning / Gas Supply / Water Supply |
|---|
| Gas hose version D/AT/ES/FI/BE/IT/NL/DK |
| Gas regulator version D/AT/ES/FI/BE/IT/NL/DK |
| Heating TRUMA Combi 4 (Dependent on layout) |
| Water supply with submerged pump |
| Hot water supply with single-lever mixer tap |
| Water pipes laid with circulating air hose |
| Electronics / Multimedia / Safety |
|---|
| Switch / disconnect automatic for starter and body battery |
| Electr. automatic charger for body / vehicle battery |
| CEE external socket for 230 V, with circuit breaker |
| Ground fault circuit interrupter |
| Bord-Control panel with digital display for power/water/waste water/battery |
| LED lighting living area (exception: entrance light + luggage compartment) |
| Charging booster for body battery |
| 230 V SCHUKO sockets "D/AT/ES/FI/BE/IT/NL/DK/SE" version |
| Miscellaneous |
|---|
| Operating instruction (German) |
| Accessories |
|---|
| 10-year leak-proofness guarantee |
| kg | 540 ROAD | 600 STREET | 600 FAMILY | 600 LIFETIME | 600 SOLUTION | 630 FREEWAY | 600 STREET XL | 600 LIFETIME XL | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MOTORISATION / DRIVE / GEARING / LOAD INCREASE | ||||||||||
| FIAT Ducato 3,300 kg; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH22100) | - | - | - | - | - | - | ||||
| FIAT Ducato 3,500 kg; 2.2 l 120 Multijet; front-wheel drive; Euro 6d-Final (88 kW/120 HP); 6-speed manual gearbox (Dependency: ABH18893) | - | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH18898, ABH18899) | - | - | - | - | - | - | ||||
| FIAT Ducato 3,500 kg; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH18902, ABH18903) | - | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (132 kW/180 HP); 6-speed manual gearbox (Dependency: ABH18906, ABH18907) | - | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (132 kW/180 HP); 6-speed manual gearbox (Dependency: ABH18910, ABH18911) | - | - | - | - | - | - | - | - | ||
| FIAT Ducato 3,500 kg; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (132 kW/180 HP); 6-speed manual gearbox (Dependency: ABH18910, ABH18911) | - | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH16873, ABH18913, ABH6613) | 40 | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg MAXI; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH16873, ABH18913, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH16873, ABH18913, ABH6613) | 40 | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg MAXI; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (118 kW/160 HP); 6-speed manual gearbox (Dependency: ABH19564, ABH19565, ABH6613) | 40 | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg MAXI; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (118 kW/160 HP); 6-speed manual gearbox (Dependency: ABH19564, ABH19565, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (118 kW/160 HP); 6-speed manual gearbox (Dependency: ABH19564, ABH19565, ABH6613) | 40 | - | - | - | - | - | - | |||
| FIAT Ducato 4,000 kg; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (132 kW/180 HP) (Dependency: ABH16873, ABH18913, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 140 Multijet; front-wheel drive; Euro VI HD (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH19975, ABH19976, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 180 Multijet; front-wheel drive; Euro Vl HD (132 kW/180 PS); 6-speed manual gearbox (Dependency: ABH19572, ABH19573, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| 9-speed torque converter automatic transmission (Dependency: ABH22994, ABH22995, ABH6613) | 18 | - | ||||||||
| Reduction of the number of permitted seats in operation from 4 to 3 people (Dependency: ABH22997) | - | - | - | - | - | - | - | - | - | |
| CHASSIS / CLIMATE CONTROL / MULTIMEDIA | ||||||||||
| Mudhatches, front (Dependent on layout) (Dependency: ABH6614) | 1 | - | - | - | - | - | ||||
| Mudhatches, rear (Dependent on layout) (Dependency: ABH6614) | 2 | - | - | - | - | - | ||||
| Coil spring on rear axle (Chassis optimisation) (Dependency: ABH6622) | 10 | - | ||||||||
| 2-channel air suspension (Dependency: ABH6624) | 25 | - | ||||||||
| Chassis in metallic paint: Fer Grey | 2 | - | ||||||||
| Chassis in metallic paint: Artense Grey | 2 | - | ||||||||
| Chassis in metallic paint: Black | 2 | - | ||||||||
| Chassis in special paint: Campovolo Grey | 2 | - | ||||||||
| Chassis in special paint: Lanzarote Grey | 2 | - | ||||||||
| High-roof paint: Selected chassis colour (Dependency: ABH6626) | - | - | - | - | - | - | - | - | ||
| High-roof paint: Campovolo Grey (Dependency: ABH6628) | - | - | - | - | - | - | - | - | ||
| Spoiler lips aluminium look (skid-plate) | - | - | ||||||||
| Spoiler lips (skid-plate) black (Dependency: ABH22999) | - | - | ||||||||
| Headlights in black frame (Dependency: ABH6630) | - | - | ||||||||
| Radiator grille painted black, with shiny black bar incl. chrome-plated trim elements (Dependency: ABH6632) | - | - | ||||||||
| Front bumper painted in chassis colour | 1 | - | ||||||||
| 16" tyres | 10 | - | ||||||||
| All-weather tyres | - | - | ||||||||
| Alloy rims for standard tyres (Dependency: ABH6638, ABH6637) | - | - | ||||||||
| 17" alloy rims with branded all-season tyres (235/60R17), black gloss front-polished in exclusive KNAUS design (Dependency: ABH23001, ABH6646, ABH6643, ABH6644, Note: H150) | 7 | - | ||||||||
| 17" alloy rims with branded all-season tyres (235/60R17), titanium metallic painted in exclusive KNAUS design (Dependency: ABH23001, ABH6646, ABH6643, ABH6644, Note: H150) | 7 | - | ||||||||
| 17" alloy rims with branded all-season tyres (235/60R17), black gloss front-polished in exclusive KNAUS design (Dependency: ABH23001, ABH6649, ABH6644, Note: H150,H161) | 4 | - | ||||||||
| 17" alloy rims with branded all-season tyres (235/60R17), titanium metallic painted in exclusive KNAUS design (Dependency: ABH23001, ABH6649, ABH6644, Note: H150,H161) | 4 | - | ||||||||
| Air conditioning in cab, automatic (extra charge from difference to manual air conditioning) | - | - | ||||||||
| Passenger's seat height adjustment | - | - | ||||||||
| Steering wheel and gear knob in leather | - | - | ||||||||
| Steering wheel with controls for radio | - | - | ||||||||
| Instrument panel in Techno design (aluminium) | - | - | ||||||||
| Seat heating for driver's and passenger's seats | 1 | - | ||||||||
| Heated windscreen | 1 | - | ||||||||
| Front and side window blackout | 4 | - | ||||||||
| Windscreen insulation mat set (interior) | 2 | - | ||||||||
| "Traction Plus" traction aid, including Hill Descent Assist | - | - | ||||||||
| Rear parking aid | 1 | - | ||||||||
| Cross traffic and Lane Change Assist | - | - | ||||||||
| Digital Central "Rearviewmirror": digital rear-vision mirror | - | - | ||||||||
| 360° Park Assist | - | - | ||||||||
| Tyre pressure sensors | 1 | - | ||||||||
| Safety Pack FIAT | 1 | - | ||||||||
| Safety Pack Easy Driver FIAT | - | - | ||||||||
| Electric parking brake | -9 | - | ||||||||
| Fog lights with cornering lights | 2 | - | ||||||||
| Fuel tank 90 ltr. | 13 | - | ||||||||
| Keyless (Entry&Go) (Dependency: ABH19850) | 1 | - | ||||||||
| Electrically adjustable and heated exterior mirrors | 1 | - | ||||||||
| Electrically folding exterior mirrors (Dependency: ABH6652) | 1 | - | ||||||||
| Full LED front lighting (low beam, high beam and indicators) (Dependency: ABH6654) | - | - | ||||||||
| LED daytime running light | - | - | ||||||||
| Reading spots in cab | - | - | ||||||||
| Dead-Lock function (Dependency: ABH16877) | - | - | ||||||||
| Alarm system FIAT incl. key with remote control (2 pc.) | 3 | - | ||||||||
| Battery disconnect switch in driver's cab (Dependency: ABH21551) | - | - | ||||||||
| 230 V socket in driver's cab | - | - | ||||||||
| Radio preparation incl. 2 loudspeakers in living area | 2 | - | ||||||||
| All-in-one navigation system | 2 | - | ||||||||
| Rear view camera incl. wiring (Dependency: ABH23003) | 1 | - | ||||||||
| Inductive charging cradle | - | - | ||||||||
| Virtual cockpit | - | - | ||||||||
| Head-up display (Dependency: ABH6656, ABH23005) | 1 | - | ||||||||
| Trailer hitch, rigid | 25 | - | ||||||||
| Trailer hitch, ball bar removable | 19 | - | ||||||||
| Bicycle carrier for 2 bikes, rear (Note: H157) | 14 | - | ||||||||
| DOORS | ||||||||||
| Multifunctional bag in KNAUS design (kitchen block) | - | - | ||||||||
| Electrical entry step, 70 cm wide | 7 | - | ||||||||
| Electric closing aid (soft-close sliding door) (Dependency: ABH6658) | 2 | - | ||||||||
| WINDOWS / ROOF HOODS / VENTILATION | ||||||||||
| KNAUS pop-up roof, white (Dependency: ABH23007, ABH6664, ABH6662, Note: H151,H168,H148) | 136 | - | - | - | - | - | ||||
| KNAUS pop-up roof KOMFORT, white (Dependency: ABH23007, ABH6664, ABH6662, Note: H151,H168,H148) | 137 | - | - | - | - | - | ||||
| KNAUS pop-up roof Lava Grau (Dependency: ABH23007, ABH6664, ABH6662, Note: H151,H168,H148) | - | - | - | - | - | |||||
| KNAUS pop-up roof komfort Lava Grau (Dependency: ABH23007, ABH6664, ABH6662, Note: H151,H168,H148) | - | - | - | - | - | |||||
| Panorama window (bow) (Dependency: ABH6666) | -10 | - | - | - | - | - | ||||
| EasySpace build-out (Dependency: ABH6668) | -12 | - | - | - | - | - | ||||
| Roof hood 40 x 40 cm with insect screen and blackout, clear (centre) (Dependency: ABH6670) | 3 | - | - | - | - | - | ||||
| Roof hood (lift-tilt) 70 x 50 cm with insect screen and blackout (rear) (Dependency: ABH6672) | 8 | - | - | |||||||
| Panorama skylight (in high roof) and hinged windows (rear) | 15 | - | - | - | - | - | - | - | ||
| SEITZ frame window SEITZ S7P 80 x 40 cm, rear left | 5 | - | - | |||||||
| SEITZ frame window SEITZ S7P 80 x 40 cm, rear right (with sliding door limiter) | 5 | - | - | - | ||||||
| Frame windows 50 x 38 cm for rear doors (limited opening) (Dependency: ABH6674) | - | - | - | |||||||
| MATERIALS / VEHICLE GRAPHICS | ||||||||||
| KNAUS emblems front and rear, black/chrome (Dependency: ABH23009) | - | - | ||||||||
| LIGHTING / TECHNOLOGY | ||||||||||
| Gutter above sliding door with dimmable LED lighting | 1 | - | ||||||||
| LIVING / SLEEPING / UPHOLSTERY AND FABRICS | ||||||||||
| Semi-dinette with single seats (Dependency: ABH6676) | 10 | - | ||||||||
| Wardrobe by separate bathroom (Dependency: ABH6679) | - | - | - | - | - | - | ||||
| EvoPore HRC mattress incl. WaterGEL topper, fixed beds only | 6 | - | ||||||||
| Lateral guest bed 180 x 70 cm, with additional cushion (Dependency: ABH6682) | 8 | - | ||||||||
| Classic front lifting bed manual (Dependency: ABH6684, Note: H147) | 26 | - | - | - | - | - | - | - | ||
| Vario front lifting bed manual (Dependency: ABH6688, ABH6687, Note: H147) | 26 | - | - | - | - | - | - | - | - | |
| Vario front lifting bed instead of Classic front lifting bed (Dependency: ABH6692, ABH6691, Note: H147) | 26 | - | - | - | - | - | - | - | - | |
| Electric drive for Vario front lifting bed (Dependency: ABH6694) | - | - | - | - | - | - | - | - | ||
| Bed extension to a double bed | 2 | - | - | - | - | - | - | |||
| Upholstery selection: INDIAN SUMMER | - | - | ||||||||
| Upholstery selection: ENERGY | - | - | ||||||||
| Upholstery selection: CASUAL SILVER | - | - | ||||||||
| Upholstery selection: ACTIVE ROCK | - | - | ||||||||
| Upholstery selection: CREAM NATURE (genuine leather) | - | - | ||||||||
| COZY HOME Package, colour selection PEACH | 3 | - | ||||||||
| COZY HOME Package, colour selection STONE | 3 | - | ||||||||
| COZY HOME Package, colour selection AVOCADO | 3 | - | ||||||||
| COZY HOME Package, colour selection AQUA | 3 | - | ||||||||
| COZY HOME Package, colour selection MAGNOLIA | 3 | - | ||||||||
| COZY HOME Package, colour selection EARTH | 3 | - | ||||||||
| Floor mat set in driver's cab in KNAUS design | 2 | - | ||||||||
| KITCHEN / BATHROOM | ||||||||||
| Compressor refrigerator 150 ltr. (incl. 30 ltr. freezer compartment), with external soundproofed compressor unit (Note: H83) | 18 | - | - | - | - | |||||
| Separate bathroom with shower cabin: Shower tray with at least 3 drains (omission of shower curtain) and bi-functional washbasin | Position 1: Hand washbasin Position 2: Ergonomic washstand (Dependency: ABH6702, ABH6700, ABH6701) | 7 | - | ||||||||
| Floor insert for shower tray (Dependency: ABH6704) | 3 | - | ||||||||
| HEATING / AIR CONDITIONING / GAS SUPPLY / WATER SUPPLY | ||||||||||
| TRUMA MonoControl CS (incl. gas filter) (Dependency: ABH6706) | 1 | - | ||||||||
| TRUMA DuoControl CS (incl. gas filter) (Dependency: ABH6706) | 1 | - | ||||||||
| TRUMA LevelControl (for 1 steel gas bottle) (Dependency: ABH6708) | - | - | ||||||||
| Smoke detector | - | - | ||||||||
| Gas detector | - | - | ||||||||
| Heating TRUMA Combi 6 | 14 | - | ||||||||
| Heating TRUMA Combi E (Dependency: ABH6710) | 1 | - | ||||||||
| Diesel heating TRUMA Combi 6 D (Dependency: ABH6712) | 16 | - | ||||||||
| Heating TRUMA Combi 6 D + E (Dependency: ABH6712) | 17 | - | ||||||||
| WEBASTO Thermotop C additional heating | 6 | - | ||||||||
| Electric underfloor heating | 8 | - | ||||||||
| TRUMA CP-Plus digital heating control panel | - | - | ||||||||
| Insulating hood waste water tank, heatable | 2 | - | ||||||||
| Air conditioning DOMETIC Freshjet 2000 (OEM) (Dependency: ABH6718, ABH6717, Note: H145) | 29 | - | ||||||||
| "bluuwater" water filter system | 1 | - | ||||||||
| Drain valve for waste water with camera (CUV) (Dependency: ABH6720) | 2 | - | ||||||||
| ELECTRONICS / MULTIMEDIA / SAFETY | ||||||||||
| Lighting control | - | - | ||||||||
| Ambient lighting: plinth light (night light); RGB light rear ceiling; with separate bath: RGB light in canopy; with classic bath: LED-band side wall and ceiling | 1 | - | ||||||||
| 230 V SCHUKO socket, additional 1 pc. in the rear | - | - | ||||||||
| 230 V SCHUKO socket, additional 1 pc. in front left-hand ceiling cabinet | - | - | ||||||||
| 12 V power socket (1 pc.) | - | - | ||||||||
| Pre-cabling for solar and satellite systems | 2 | - | ||||||||
| Additional AGM board battery | 24 | - | ||||||||
| Lithium-ion on-board batterie (instead of standard battery) (Dependency: ABH6722) | -8 | - | ||||||||
| Additional Lithium-ion board battery (Dependency: ABH6725, ABH6726) | 12 | - | ||||||||
| Reading lamp gooseneck in seating area incl. USB socket | - | - | ||||||||
| Charging tray for inductive charging (Dependency: ABH6728) | - | - | - | - | - | - | ||||
| Solar system (100 W) (Dependency: ABH6666) | 9 | - | - | - | ||||||
| Complete antenna system Oyster 60 Premium Twin incl. 21,5'' SMART-TV (Dependency: ABH6731, ABH6732, Note: H145) | 20 | - | ||||||||
| 21.5" SMART TV set with HD tuner incl. holder, in living area (Dependency: ABH6736, ABH6735) | 6 | - | ||||||||
| 21.5" SMART TV set with HD tuner incl. holder, in sleeping area (Dependency: ABH6738) | 6 | - | ||||||||
| Pre-cabling for TV in the sleeping area | 1 | - | ||||||||
| TV holder in living area incl. combi socket | - | - | ||||||||
| TV holder in sleeping area incl. combi socket (Dependency: ABH6740) | 3 | - | ||||||||
| Velocate® GPS tracker (Note: H146) | - | - | ||||||||
| Velocate® LIFETIME license with unlimited, personal, EU-wide tracking (Dependency: ABH6742) | - | - | ||||||||
| Velocate® sensors (gas, temperature, motion) (Dependency: ABH6744) | - | - | ||||||||
| AWNING / AWNING ACCESSORIES | ||||||||||
| Awning 325 x 250 cm, anthracite (Note: H135) | 28 | - | - | - | - | - | - | - | - | |
| Awning 350 x 250 cm, anthracite (Note: H135) | 28 | - | - | - | - | - | - | |||
| Awning 375 x 250 cm, anthracite (Note: H135) | 31 | - | - | - | - | - | - | |||
| Awning 400 x 250 cm, anthracite (Note: H135) | 31 | - | - | - | - | - | - | - | - | |
| MISCELLANEOUS | ||||||||||
| MOT and registration document | - | - | ||||||||
| ACCESSORIES | ||||||||||
| MediKit voucher (Note: H137) | - | - | ||||||||
| SilwyREADY | ||||||||||
| FIAT Package – KNAUS Camper Vans (3 kg) | |
|---|---|
| Electrically adjustable and heated exterior mirrors | - |
| Passenger's seat height adjustment | - |
| Steering wheel with controls for radio | - |
| Radio preparation incl. 2 loudspeakers in living area | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Funline Package (42 kg) | |
|---|---|
| Electrical entry step, 70 cm wide | - |
| Lighting control | - |
| TRUMA CP-Plus digital heating control panel | - |
| Insulating hood waste water tank, heatable | - |
| "bluuwater" water filter system | - |
| Awning CAVA | - |
| Front and side window blackout | - |
| MediKit voucher | - |
| silwyREADY | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Styling I Package (1 kg) | |
|---|---|
| Front bumper painted in chassis colour | - |
| Alloy rims for standard tyres | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Styling Package - Black (1 kg) | |
|---|---|
| Front bumper painted in chassis colour | - |
| Alloy rims for standard tyres | - |
| Headlights in black frame | - |
| Radiator grille painted black, with shiny black bar incl. chrome-plated trim elements | - |
| Spoiler lips (skid-plate) black | - |
| Full LED front lighting (low beam, high beam and indicators) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Styling Package - Alu (1 kg) | |
|---|---|
| Front bumper painted in chassis colour | - |
| Alloy rims for standard tyres | - |
| Spoiler lips aluminium look (skid-plate) | - |
| Full LED front lighting (low beam, high beam and indicators) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Media Package (4 kg) | |
|---|---|
| Rear view camera incl. wiring | - |
| All-in-one navigation system | - |
| Head-up display | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Ambient lighting Package incl. lighting control (2 kg) | |
|---|---|
| Gutter above sliding door with dimmable LED lighting | - |
| Ambient lighting: plinth light (night light); RGB light rear ceiling; with separate bath: RGB light in canopy; with classic bath: LED-band side wall and ceiling | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| TV Package 21,5" – Oyster 60 (21 kg) | |
|---|---|
| TV holder in living area incl. combi socket | - |
| Pre-cabling for TV in the sleeping area | - |
| Complete antenna system Oyster 60 Premium Twin incl. 21,5'' SMART-TV | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| E–Package | |
|---|---|
| 230 V SCHUKO socket, additional 1 pc. in the rear | - |
| 230 V SCHUKO socket, additional 1 pc. in front left-hand ceiling cabinet | - |
| 12 V power socket (1 pc.) | - |
| Reading spots in cab | - |
| Reading lamp gooseneck in seating area incl. USB socket | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Arctic Package (1 kg) | |
|---|---|
| "Traction Plus" traction aid, including Hill Descent Assist | - |
| 230 V socket in driver's cab | - |
| Heated windscreen | - |
| All-weather tyres | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Care-drive Package FIAT (2 kg) | |
|---|---|
| Tyre pressure sensors | - |
| Safety Pack FIAT | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Connected-Security-Package for velocate® GPS-Tracker | |
|---|---|
| velocate® GPS tracker | - |
| velocate® LIFETIME license with unlimited, personal, EU-wide tracking | - |
| velocate® sensors (gas, temperature, motion) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Welcome Package – Oyster 60 (32 kg) | |
|---|---|
| Gutter above sliding door with dimmable LED lighting | - |
| Multifunctional bag in KNAUS design (kitchen block) | - |
| Floor mat set in driver's cab in KNAUS design | - |
| 230 V SCHUKO socket, additional 1 pc. in the rear | - |
| 230 V SCHUKO socket, additional 1 pc. in front left-hand ceiling cabinet | - |
| 12 V power socket (1 pc.) | - |
| Rear view camera incl. wiring | - |
| All-in-one navigation system | - |
| Reading spots in cab | - |
| TV holder in living area incl. combi socket | - |
| Pre-cabling for TV in the sleeping area | - |
| Complete antenna system Oyster 60 Premium Twin incl. 21,5'' SMART-TV | - |
| Ambient lighting: plinth light (night light); RGB light rear ceiling; with separate bath: RGB light in canopy; with classic bath: LED-band side wall and ceiling | - |
| Reading lamp gooseneck in seating area incl. USB socket | - |
| Head-up display | - |
| COZY HOME Package, colour selection CAVA | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Basic Equipment | |
|---|---|
| Total length (cm) | 599 |
| Width (outside) (cm) | 205 |
| Width (inside) (cm) | 187 |
| Height (outside) (cm) | 312 |
| Height (inside) (cm) | 238 |
| Effective vehicle mass including legally required basic equipment (kg) | 2920 |
| Technically maximum authorised laden mass (kg) | 3500 |
| Maximum payload (kg) | 580 |
| Towing load (kg) | 2500 |
| Wheelbase (cm) | 403 |
| Tyre size | – |
| Beds (Note: H141) | 5 |
| Max. number of beds (Note: H142) | 5 |
| Number of persons allowed in driving operation | 4 |
| Automatic three-point belts, height-adjustable | 2 |
| Max. belt-secured seats | 4 |
| Body | |
|---|---|
| Total number of hinged windows | 9 |
| Wall thickness, floor (mm) | 25 |
| Living Area | |
|---|---|
| Three-point belts in driving direction | 2 |
| Bed size, rear lateral beds with single-piece slatted frame with compact bathroom (cm) | – |
| Bed size, rear lateral beds with single-piece slatted frame with separate bathroom, optional (cm) | – |
| Bed size, rear longitudinal bed with compact bathroom (cm) | 180 x 85; 200 x 85 |
| Bed size, rear longitudinal bed with separate bathroom, optional (cm) | 189 x 85; 200 x 85 |
| Bed size, spare bed on semi-dinette and driver's seat (cm) | 135 x 60 |
| Bed size, guest bed optional (cm) | 180 x 70 |
| Bed size, Classic lifting bed (cm) | – |
| Bed size, Vario lifting bed (cm) | – |
| Bed size, functional high-roof comfort bed (cm) | 190 x 130 |
| Water | |
|---|---|
| Waste water volume in liters | 90 |
| Fresh water volume in liters (Note: H711A,H712D) | 102 |
| Fresh water volume in liters (Note: H712A,H711A) | – |
| Kitchen | |
|---|---|
| Refrigerator (ltr.) | 70 |
| Electrical Supply | |
|---|---|
| Living area battery | 95 |
| Number of 12 V socket(s) | 1 |
| Number of 230 V socket(s) | 2 |
| Number of USB socket(s) | 2 |
| Motorisation / Drive / Gearing / Load Increase |
|---|
| FIAT Ducato 3,500 kg; 2.2 l 120 Multijet; front-wheel drive; Euro 6d-Final (88 kW/120 HP); 6-speed manual gearbox (Dependency: ABH18893) |
| 6-speed manual gearbox |
| Chassis / Climate Control / Multimedia |
|---|
| Rear/front axle stabiliser |
| Disk brakes |
| Left-hand drive |
| Chassis uni paint: White |
| High-roof paint: White |
| Black radiator grille, with chrome clasp |
| Front bumper grained, unpainted grey |
| 15" tyres (Dependent on layout) |
| Steel rims (Dependency: ABH6634) |
| Air conditioning in cab, manual including pollen filter and outside temperature display |
| Driver airbag |
| Passenger airbag |
| Driver's seat height adjustment |
| Cupholder in centre console |
| Original FIAT Captainchair seats with armrests |
| Cab seats swivelling |
| Seat box cladding for cab seats |
| Tempomat ® - Cruise Control |
| ESP |
| Hill Holder (Hill Start Assist) |
| ABS |
| Electronic immobiliser |
| Electromechanical power steering |
| Trailer Stability Control System |
| Post Collision Braking System |
| Crosswind Assist |
| Spare tyre |
| Fuel tank 75 ltr. |
| Car key with remote control for central locking for cab doors |
| Power windows (driver's and passenger's door) |
| Exterior mirrors manually adjustable |
| Daytime running light with series headlamps |
| Doors |
|---|
| Insect screen door |
| Sliding door with manual closing aid |
| Service Hatches / Garage Doors |
|---|
| KNAUS Technology module with supply installations |
| Gas locker for gas bottle reserves 2 x 11 kg (Dependent on layout) |
| Windows / Roof Hoods / Ventilation |
|---|
| Comfort roller blind system |
| Windows with safety lock |
| Frame window SEITZ S7P |
| Roof hood (lift-tilt) 70 x 50 cm with insect screen and blackout (bow) |
| Roof hood (lift-tilt) 70 x 50 cm with insect screen and blackout (rear) (Dependency: ABH6672) |
| SEITZ frame window SEITZ S7P 80 x 40 cm, rear left |
| SEITZ frame window SEITZ S7P 80 x 40 cm, rear right (with sliding door limiter) |
| Frame windows for rear doors |
| Hinged window 28 x 30 cm with insect screen and blackout, (toilet room) |
| Mushroom fan (toilet room) |
| Materials / Vehicle Graphics |
|---|
| Floor plate in sandwich construction |
| Breathable soft-touch side wall cladding |
| Temperature-controlled intermediate floor in seating group |
| Furniture / Surfaces |
|---|
| Furniture decor: Egmond Elm |
| Furniture construction in full carcase design with dowelling technology |
| Vertical furniture surfaces with ABS coating |
| Kitchen worktop and table in seating group in CPL (laminate) |
| Aluminium / rod profile with round edges |
| Furniture hinges with spring reinforcement |
| Drawers, hatches and doors flushly fitted in furniture body |
| Kitchen drawers with soft-close function and ball bearing mounted full extension |
| Ceiling cabinet hatch with handles, rocker arms and soft-close function |
| Living / Sleeping / Upholstery And Fabrics |
|---|
| Dinette seat extension through side pull-out (also while driving) |
| Floating dinette table, swivelling |
| ISOFIX system (2 child seats) |
| 2-layer cold foam mattresses with breathable and durable mattress cover |
| Rear longitudinal bed with full-size slatted frame |
| Slatted frames incl. mattresses, stackable and removable |
| Conversion of seating group to guest bed (Note: H169) |
| Upholstery selection: TURIN (FIAT) |
| Kitchen / Bathroom |
|---|
| 2-burner cooker with glass cover, separate sink with cover in surface decor of the worktop (Dependency: ABH6696) |
| Gas control units centrally arranged |
| Compressor refrigerator 70 ltr. (incl. 7.5 ltr. freezer compartment), with night and silent mode |
| Kitchen worktop with foldable extension |
| WC disposal tunnel with full cladding |
| Toilet / shower room with washstand, cassette toilet, sliding mirror and storage compartments |
| Compact bathroom with patented shower curtain (with air ring): Shower tray with at least 2 drains |
| Cassette toilet DOMETIC swivelling |
| Heating / Air Conditioning / Gas Supply / Water Supply |
|---|
| Gas hose version D/AT/ES/FI/BE/IT/NL/DK |
| Gas regulator version D/AT/ES/FI/BE/IT/NL/DK |
| Heating TRUMA Combi 4 (Dependent on layout) |
| Water supply with submerged pump |
| Hot water supply with single-lever mixer tap |
| Water pipes laid with circulating air hose |
| Electronics / Multimedia / Safety |
|---|
| Switch / disconnect automatic for starter and body battery |
| Electr. automatic charger for body / vehicle battery |
| CEE external socket for 230 V, with circuit breaker |
| Ground fault circuit interrupter |
| Bord-Control panel with digital display for power/water/waste water/battery |
| LED lighting living area (exception: entrance light + luggage compartment) |
| Charging booster for body battery |
| 230 V SCHUKO sockets "D/AT/ES/FI/BE/IT/NL/DK/SE" version |
| Miscellaneous |
|---|
| Operating instruction (German) |
| Accessories |
|---|
| 10-year leak-proofness guarantee |
| kg | 540 ROAD | 600 STREET | 600 FAMILY | 600 LIFETIME | 600 SOLUTION | 630 FREEWAY | 600 STREET XL | 600 LIFETIME XL | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MOTORISATION / DRIVE / GEARING / LOAD INCREASE | ||||||||||
| FIAT Ducato 3,300 kg; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH22100) | - | - | - | - | - | - | ||||
| FIAT Ducato 3,500 kg; 2.2 l 120 Multijet; front-wheel drive; Euro 6d-Final (88 kW/120 HP); 6-speed manual gearbox (Dependency: ABH18893) | - | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH18898, ABH18899) | - | - | - | - | - | - | ||||
| FIAT Ducato 3,500 kg; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH18902, ABH18903) | - | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (132 kW/180 HP); 6-speed manual gearbox (Dependency: ABH18906, ABH18907) | - | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (132 kW/180 HP); 6-speed manual gearbox (Dependency: ABH18910, ABH18911) | - | - | - | - | - | - | - | - | ||
| FIAT Ducato 3,500 kg; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (132 kW/180 HP); 6-speed manual gearbox (Dependency: ABH18910, ABH18911) | - | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH16873, ABH18913, ABH6613) | 40 | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg MAXI; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH16873, ABH18913, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 140 Multijet; front-wheel drive; Euro 6d-Final (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH16873, ABH18913, ABH6613) | 40 | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg MAXI; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (118 kW/160 HP); 6-speed manual gearbox (Dependency: ABH19564, ABH19565, ABH6613) | 40 | - | - | - | - | - | - | |||
| FIAT Ducato 3,500 kg MAXI; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (118 kW/160 HP); 6-speed manual gearbox (Dependency: ABH19564, ABH19565, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (118 kW/160 HP); 6-speed manual gearbox (Dependency: ABH19564, ABH19565, ABH6613) | 40 | - | - | - | - | - | - | |||
| FIAT Ducato 4,000 kg; 2.2 l 180 Multijet; front-wheel drive; Euro 6d-Final (132 kW/180 HP) (Dependency: ABH16873, ABH18913, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 140 Multijet; front-wheel drive; Euro VI HD (103 kW/140 HP); 6-speed manual gearbox (Dependency: ABH19975, ABH19976, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| FIAT Ducato 3,500 kg MAXI; 2.2 l 180 Multijet; front-wheel drive; Euro Vl HD (132 kW/180 PS); 6-speed manual gearbox (Dependency: ABH19572, ABH19573, ABH6613) | 40 | - | - | - | - | - | - | - | - | |
| 9-speed torque converter automatic transmission (Dependency: ABH22994, ABH22995, ABH6613) | 18 | - | ||||||||
| Reduction of the number of permitted seats in operation from 4 to 3 people (Dependency: ABH22997) | - | - | - | - | - | - | - | - | - | |
| CHASSIS / CLIMATE CONTROL / MULTIMEDIA | ||||||||||
| Mudhatches, front (Dependent on layout) (Dependency: ABH6614) | 1 | - | - | - | - | - | ||||
| Mudhatches, rear (Dependent on layout) (Dependency: ABH6614) | 2 | - | - | - | - | - | ||||
| Coil spring on rear axle (Chassis optimisation) (Dependency: ABH6622) | 10 | - | ||||||||
| 2-channel air suspension (Dependency: ABH6624) | 25 | - | ||||||||
| Chassis in metallic paint: Fer Grey | 2 | - | ||||||||
| Chassis in metallic paint: Artense Grey | 2 | - | ||||||||
| Chassis in metallic paint: Black | 2 | - | ||||||||
| Chassis in special paint: Campovolo Grey | 2 | - | ||||||||
| Chassis in special paint: Lanzarote Grey | 2 | - | ||||||||
| High-roof paint: Selected chassis colour (Dependency: ABH6626) | - | - | - | - | - | - | - | - | ||
| High-roof paint: Campovolo Grey (Dependency: ABH6628) | - | - | - | - | - | - | - | - | ||
| Spoiler lips aluminium look (skid-plate) | - | - | ||||||||
| Spoiler lips (skid-plate) black (Dependency: ABH22999) | - | - | ||||||||
| Headlights in black frame (Dependency: ABH6630) | - | - | ||||||||
| Radiator grille painted black, with shiny black bar incl. chrome-plated trim elements (Dependency: ABH6632) | - | - | ||||||||
| Front bumper painted in chassis colour | 1 | - | ||||||||
| 16" tyres | 10 | - | ||||||||
| All-weather tyres | - | - | ||||||||
| Alloy rims for standard tyres (Dependency: ABH6638, ABH6637) | - | - | ||||||||
| 17" alloy rims with branded all-season tyres (235/60R17), black gloss front-polished in exclusive KNAUS design (Dependency: ABH23001, ABH6646, ABH6643, ABH6644, Note: H150) | 7 | - | ||||||||
| 17" alloy rims with branded all-season tyres (235/60R17), titanium metallic painted in exclusive KNAUS design (Dependency: ABH23001, ABH6646, ABH6643, ABH6644, Note: H150) | 7 | - | ||||||||
| 17" alloy rims with branded all-season tyres (235/60R17), black gloss front-polished in exclusive KNAUS design (Dependency: ABH23001, ABH6649, ABH6644, Note: H150,H161) | 4 | - | ||||||||
| 17" alloy rims with branded all-season tyres (235/60R17), titanium metallic painted in exclusive KNAUS design (Dependency: ABH23001, ABH6649, ABH6644, Note: H150,H161) | 4 | - | ||||||||
| Air conditioning in cab, automatic (extra charge from difference to manual air conditioning) | - | - | ||||||||
| Passenger's seat height adjustment | - | - | ||||||||
| Steering wheel and gear knob in leather | - | - | ||||||||
| Steering wheel with controls for radio | - | - | ||||||||
| Instrument panel in Techno design (aluminium) | - | - | ||||||||
| Seat heating for driver's and passenger's seats | 1 | - | ||||||||
| Heated windscreen | 1 | - | ||||||||
| Front and side window blackout | 4 | - | ||||||||
| Windscreen insulation mat set (interior) | 2 | - | ||||||||
| "Traction Plus" traction aid, including Hill Descent Assist | - | - | ||||||||
| Rear parking aid | 1 | - | ||||||||
| Cross traffic and Lane Change Assist | - | - | ||||||||
| Digital Central "Rearviewmirror": digital rear-vision mirror | - | - | ||||||||
| 360° Park Assist | - | - | ||||||||
| Tyre pressure sensors | 1 | - | ||||||||
| Safety Pack FIAT | 1 | - | ||||||||
| Safety Pack Easy Driver FIAT | - | - | ||||||||
| Electric parking brake | -9 | - | ||||||||
| Fog lights with cornering lights | 2 | - | ||||||||
| Fuel tank 90 ltr. | 13 | - | ||||||||
| Keyless (Entry&Go) (Dependency: ABH19850) | 1 | - | ||||||||
| Electrically adjustable and heated exterior mirrors | 1 | - | ||||||||
| Electrically folding exterior mirrors (Dependency: ABH6652) | 1 | - | ||||||||
| Full LED front lighting (low beam, high beam and indicators) (Dependency: ABH6654) | - | - | ||||||||
| LED daytime running light | - | - | ||||||||
| Reading spots in cab | - | - | ||||||||
| Dead-Lock function (Dependency: ABH16877) | - | - | ||||||||
| Alarm system FIAT incl. key with remote control (2 pc.) | 3 | - | ||||||||
| Battery disconnect switch in driver's cab (Dependency: ABH21551) | - | - | ||||||||
| 230 V socket in driver's cab | - | - | ||||||||
| Radio preparation incl. 2 loudspeakers in living area | 2 | - | ||||||||
| All-in-one navigation system | 2 | - | ||||||||
| Rear view camera incl. wiring (Dependency: ABH23003) | 1 | - | ||||||||
| Inductive charging cradle | - | - | ||||||||
| Virtual cockpit | - | - | ||||||||
| Head-up display (Dependency: ABH6656, ABH23005) | 1 | - | ||||||||
| Trailer hitch, rigid | 25 | - | ||||||||
| Trailer hitch, ball bar removable | 19 | - | ||||||||
| Bicycle carrier for 2 bikes, rear (Note: H157) | 14 | - | ||||||||
| DOORS | ||||||||||
| Multifunctional bag in KNAUS design (kitchen block) | - | - | ||||||||
| Electrical entry step, 70 cm wide | 7 | - | ||||||||
| Electric closing aid (soft-close sliding door) (Dependency: ABH6658) | 2 | - | ||||||||
| WINDOWS / ROOF HOODS / VENTILATION | ||||||||||
| KNAUS pop-up roof, white (Dependency: ABH23007, ABH6664, ABH6662, Note: H151,H168,H148) | 136 | - | - | - | - | - | ||||
| KNAUS pop-up roof KOMFORT, white (Dependency: ABH23007, ABH6664, ABH6662, Note: H151,H168,H148) | 137 | - | - | - | - | - | ||||
| KNAUS pop-up roof Lava Grau (Dependency: ABH23007, ABH6664, ABH6662, Note: H151,H168,H148) | - | - | - | - | - | |||||
| KNAUS pop-up roof komfort Lava Grau (Dependency: ABH23007, ABH6664, ABH6662, Note: H151,H168,H148) | - | - | - | - | - | |||||
| Panorama window (bow) (Dependency: ABH6666) | -10 | - | - | - | - | - | ||||
| EasySpace build-out (Dependency: ABH6668) | -12 | - | - | - | - | - | ||||
| Roof hood 40 x 40 cm with insect screen and blackout, clear (centre) (Dependency: ABH6670) | 3 | - | - | - | - | - | ||||
| Roof hood (lift-tilt) 70 x 50 cm with insect screen and blackout (rear) (Dependency: ABH6672) | 8 | - | - | |||||||
| Panorama skylight (in high roof) and hinged windows (rear) | 15 | - | - | - | - | - | - | - | ||
| SEITZ frame window SEITZ S7P 80 x 40 cm, rear left | 5 | - | - | |||||||
| SEITZ frame window SEITZ S7P 80 x 40 cm, rear right (with sliding door limiter) | 5 | - | - | - | ||||||
| Frame windows 50 x 38 cm for rear doors (limited opening) (Dependency: ABH6674) | - | - | - | |||||||
| MATERIALS / VEHICLE GRAPHICS | ||||||||||
| KNAUS emblems front and rear, black/chrome (Dependency: ABH23009) | - | - | ||||||||
| LIGHTING / TECHNOLOGY | ||||||||||
| Gutter above sliding door with dimmable LED lighting | 1 | - | ||||||||
| LIVING / SLEEPING / UPHOLSTERY AND FABRICS | ||||||||||
| Semi-dinette with single seats (Dependency: ABH6676) | 10 | - | ||||||||
| Wardrobe by separate bathroom (Dependency: ABH6679) | - | - | - | - | - | - | ||||
| EvoPore HRC mattress incl. WaterGEL topper, fixed beds only | 6 | - | ||||||||
| Lateral guest bed 180 x 70 cm, with additional cushion (Dependency: ABH6682) | 8 | - | ||||||||
| Classic front lifting bed manual (Dependency: ABH6684, Note: H147) | 26 | - | - | - | - | - | - | - | ||
| Vario front lifting bed manual (Dependency: ABH6688, ABH6687, Note: H147) | 26 | - | - | - | - | - | - | - | - | |
| Vario front lifting bed instead of Classic front lifting bed (Dependency: ABH6692, ABH6691, Note: H147) | 26 | - | - | - | - | - | - | - | - | |
| Electric drive for Vario front lifting bed (Dependency: ABH6694) | - | - | - | - | - | - | - | - | ||
| Bed extension to a double bed | 2 | - | - | - | - | - | - | |||
| Upholstery selection: INDIAN SUMMER | - | - | ||||||||
| Upholstery selection: ENERGY | - | - | ||||||||
| Upholstery selection: CASUAL SILVER | - | - | ||||||||
| Upholstery selection: ACTIVE ROCK | - | - | ||||||||
| Upholstery selection: CREAM NATURE (genuine leather) | - | - | ||||||||
| COZY HOME Package, colour selection PEACH | 3 | - | ||||||||
| COZY HOME Package, colour selection STONE | 3 | - | ||||||||
| COZY HOME Package, colour selection AVOCADO | 3 | - | ||||||||
| COZY HOME Package, colour selection AQUA | 3 | - | ||||||||
| COZY HOME Package, colour selection MAGNOLIA | 3 | - | ||||||||
| COZY HOME Package, colour selection EARTH | 3 | - | ||||||||
| Floor mat set in driver's cab in KNAUS design | 2 | - | ||||||||
| KITCHEN / BATHROOM | ||||||||||
| Compressor refrigerator 150 ltr. (incl. 30 ltr. freezer compartment), with external soundproofed compressor unit (Note: H83) | 18 | - | - | - | - | |||||
| Separate bathroom with shower cabin: Shower tray with at least 3 drains (omission of shower curtain) and bi-functional washbasin | Position 1: Hand washbasin Position 2: Ergonomic washstand (Dependency: ABH6702, ABH6700, ABH6701) | 7 | - | ||||||||
| Floor insert for shower tray (Dependency: ABH6704) | 3 | - | ||||||||
| HEATING / AIR CONDITIONING / GAS SUPPLY / WATER SUPPLY | ||||||||||
| TRUMA MonoControl CS (incl. gas filter) (Dependency: ABH6706) | 1 | - | ||||||||
| TRUMA DuoControl CS (incl. gas filter) (Dependency: ABH6706) | 1 | - | ||||||||
| TRUMA LevelControl (for 1 steel gas bottle) (Dependency: ABH6708) | - | - | ||||||||
| Smoke detector | - | - | ||||||||
| Gas detector | - | - | ||||||||
| Heating TRUMA Combi 6 | 14 | - | ||||||||
| Heating TRUMA Combi E (Dependency: ABH6710) | 1 | - | ||||||||
| Diesel heating TRUMA Combi 6 D (Dependency: ABH6712) | 16 | - | ||||||||
| Heating TRUMA Combi 6 D + E (Dependency: ABH6712) | 17 | - | ||||||||
| WEBASTO Thermotop C additional heating | 6 | - | ||||||||
| Electric underfloor heating | 8 | - | ||||||||
| TRUMA CP-Plus digital heating control panel | - | - | ||||||||
| Insulating hood waste water tank, heatable | 2 | - | ||||||||
| Air conditioning DOMETIC Freshjet 2000 (OEM) (Dependency: ABH6718, ABH6717, Note: H145) | 29 | - | ||||||||
| "bluuwater" water filter system | 1 | - | ||||||||
| Drain valve for waste water with camera (CUV) (Dependency: ABH6720) | 2 | - | ||||||||
| ELECTRONICS / MULTIMEDIA / SAFETY | ||||||||||
| Lighting control | - | - | ||||||||
| Ambient lighting: plinth light (night light); RGB light rear ceiling; with separate bath: RGB light in canopy; with classic bath: LED-band side wall and ceiling | 1 | - | ||||||||
| 230 V SCHUKO socket, additional 1 pc. in the rear | - | - | ||||||||
| 230 V SCHUKO socket, additional 1 pc. in front left-hand ceiling cabinet | - | - | ||||||||
| 12 V power socket (1 pc.) | - | - | ||||||||
| Pre-cabling for solar and satellite systems | 2 | - | ||||||||
| Additional AGM board battery | 24 | - | ||||||||
| Lithium-ion on-board batterie (instead of standard battery) (Dependency: ABH6722) | -8 | - | ||||||||
| Additional Lithium-ion board battery (Dependency: ABH6725, ABH6726) | 12 | - | ||||||||
| Reading lamp gooseneck in seating area incl. USB socket | - | - | ||||||||
| Charging tray for inductive charging (Dependency: ABH6728) | - | - | - | - | - | - | ||||
| Solar system (100 W) (Dependency: ABH6666) | 9 | - | - | - | ||||||
| Complete antenna system Oyster 60 Premium Twin incl. 21,5'' SMART-TV (Dependency: ABH6731, ABH6732, Note: H145) | 20 | - | ||||||||
| 21.5" SMART TV set with HD tuner incl. holder, in living area (Dependency: ABH6736, ABH6735) | 6 | - | ||||||||
| 21.5" SMART TV set with HD tuner incl. holder, in sleeping area (Dependency: ABH6738) | 6 | - | ||||||||
| Pre-cabling for TV in the sleeping area | 1 | - | ||||||||
| TV holder in living area incl. combi socket | - | - | ||||||||
| TV holder in sleeping area incl. combi socket (Dependency: ABH6740) | 3 | - | ||||||||
| Velocate® GPS tracker (Note: H146) | - | - | ||||||||
| Velocate® LIFETIME license with unlimited, personal, EU-wide tracking (Dependency: ABH6742) | - | - | ||||||||
| Velocate® sensors (gas, temperature, motion) (Dependency: ABH6744) | - | - | ||||||||
| AWNING / AWNING ACCESSORIES | ||||||||||
| Awning 325 x 250 cm, anthracite (Note: H135) | 28 | - | - | - | - | - | - | - | - | |
| Awning 350 x 250 cm, anthracite (Note: H135) | 28 | - | - | - | - | - | - | |||
| Awning 375 x 250 cm, anthracite (Note: H135) | 31 | - | - | - | - | - | - | |||
| Awning 400 x 250 cm, anthracite (Note: H135) | 31 | - | - | - | - | - | - | - | - | |
| MISCELLANEOUS | ||||||||||
| MOT and registration document | - | - | ||||||||
| ACCESSORIES | ||||||||||
| MediKit voucher (Note: H137) | - | - | ||||||||
| SilwyREADY | - | - | ||||||||
| FIAT Package – KNAUS Camper Vans (3 kg) | |
|---|---|
| Electrically adjustable and heated exterior mirrors | - |
| Passenger's seat height adjustment | - |
| Steering wheel with controls for radio | - |
| Radio preparation incl. 2 loudspeakers in living area | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Funline Package (42 kg) | |
|---|---|
| Electrical entry step, 70 cm wide | - |
| Lighting control | - |
| TRUMA CP-Plus digital heating control panel | - |
| Insulating hood waste water tank, heatable | - |
| "bluuwater" water filter system | - |
| Awning CAVA | - |
| Front and side window blackout | - |
| MediKit voucher | - |
| silwyREADY | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Styling I Package (1 kg) | |
|---|---|
| Front bumper painted in chassis colour | - |
| Alloy rims for standard tyres | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Styling Package - Black (1 kg) | |
|---|---|
| Front bumper painted in chassis colour | - |
| Alloy rims for standard tyres | - |
| Headlights in black frame | - |
| Radiator grille painted black, with shiny black bar incl. chrome-plated trim elements | - |
| Spoiler lips (skid-plate) black | - |
| Full LED front lighting (low beam, high beam and indicators) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Styling Package - Alu (1 kg) | |
|---|---|
| Front bumper painted in chassis colour | - |
| Alloy rims for standard tyres | - |
| Spoiler lips aluminium look (skid-plate) | - |
| Full LED front lighting (low beam, high beam and indicators) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Media Package (4 kg) | |
|---|---|
| Rear view camera incl. wiring | - |
| All-in-one navigation system | - |
| Head-up display | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Ambient lighting Package incl. lighting control (2 kg) | |
|---|---|
| Gutter above sliding door with dimmable LED lighting | - |
| Ambient lighting: plinth light (night light); RGB light rear ceiling; with separate bath: RGB light in canopy; with classic bath: LED-band side wall and ceiling | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| TV Package 21,5" – Oyster 60 (21 kg) | |
|---|---|
| TV holder in living area incl. combi socket | - |
| Pre-cabling for TV in the sleeping area | - |
| Complete antenna system Oyster 60 Premium Twin incl. 21,5'' SMART-TV | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| E–Package | |
|---|---|
| 230 V SCHUKO socket, additional 1 pc. in the rear | - |
| 230 V SCHUKO socket, additional 1 pc. in front left-hand ceiling cabinet | - |
| 12 V power socket (1 pc.) | - |
| Reading spots in cab | - |
| Reading lamp gooseneck in seating area incl. USB socket | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Arctic Package (1 kg) | |
|---|---|
| "Traction Plus" traction aid, including Hill Descent Assist | - |
| 230 V socket in driver's cab | - |
| Heated windscreen | - |
| All-weather tyres | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Care-drive Package FIAT (2 kg) | |
|---|---|
| Tyre pressure sensors | - |
| Safety Pack FIAT | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Connected-Security-Package for velocate® GPS-Tracker | |
|---|---|
| velocate® GPS tracker | - |
| velocate® LIFETIME license with unlimited, personal, EU-wide tracking | - |
| velocate® sensors (gas, temperature, motion) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Welcome Package – Oyster 60 (32 kg) | |
|---|---|
| Gutter above sliding door with dimmable LED lighting | - |
| Multifunctional bag in KNAUS design (kitchen block) | - |
| Floor mat set in driver's cab in KNAUS design | - |
| 230 V SCHUKO socket, additional 1 pc. in the rear | - |
| 230 V SCHUKO socket, additional 1 pc. in front left-hand ceiling cabinet | - |
| 12 V power socket (1 pc.) | - |
| Rear view camera incl. wiring | - |
| All-in-one navigation system | - |
| Reading spots in cab | - |
| TV holder in living area incl. combi socket | - |
| Pre-cabling for TV in the sleeping area | - |
| Complete antenna system Oyster 60 Premium Twin incl. 21,5'' SMART-TV | - |
| Ambient lighting: plinth light (night light); RGB light rear ceiling; with separate bath: RGB light in canopy; with classic bath: LED-band side wall and ceiling | - |
| Reading lamp gooseneck in seating area incl. USB socket | - |
| Head-up display | - |
| COZY HOME Package, colour selection CAVA | - |
| Total price options | - |
| List price package | - |
| Saving | - |
