And feeling good is limitless with the 5‐star dream home to go: The extraordinary furniture construction and the stylish interior in cocooning design make the AZUR a real dream home. Inside and out, it impresses with its unique, dynamic light signature. Special highlight: the self‐healing FibreFrame.

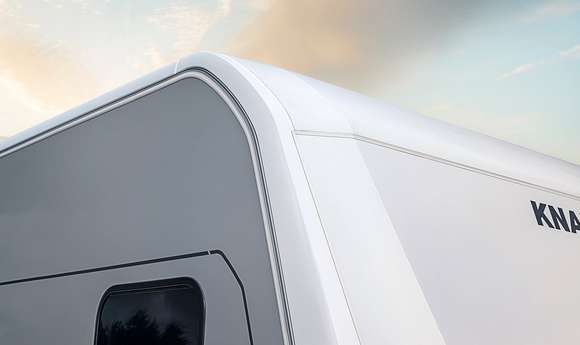

Self‐healing FibreFrame
Minor damage and scratches (without material removal) to the frame heal by themselves in the sunlight.

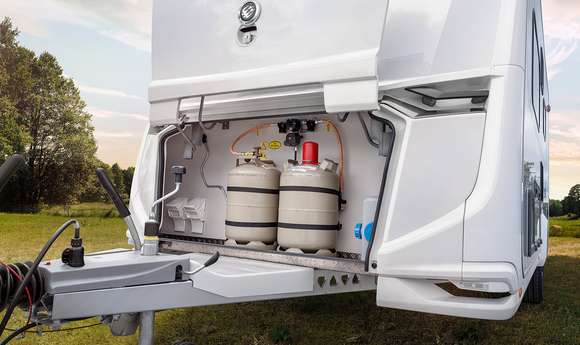

Spacious Gas Box
Two large gas bottles and other accessories can be stored comfortably and safely here. The flap is particularly easy to open thanks to the parallel lift mechanism with gas pressure spring.

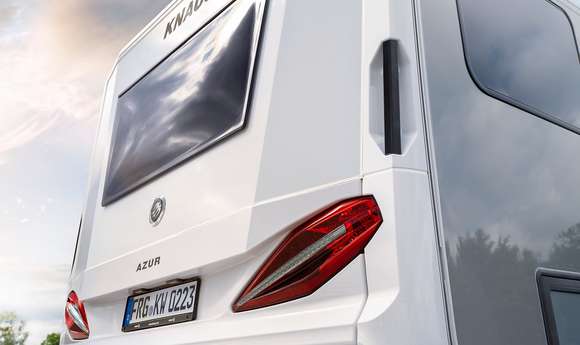

FoldXPand Rear
In the automotive rear, the innovative FoldXPand technology provides more space in the sleeping area while maintaining the same external dimensions.

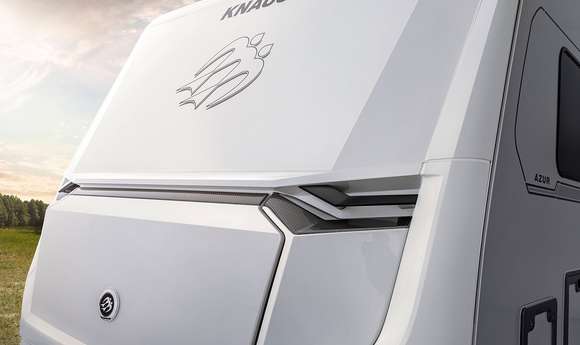

FoldXPand Bow
FoldXPand technology is also used in the bow – for more space in the seating area.

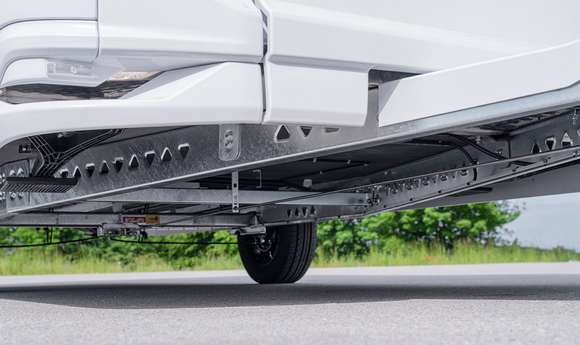

The Dyonic chassis combines the best dynamics with innovative Bionic. It is particularly light, stable and durable – making it the optimal chassis for the AZUR.

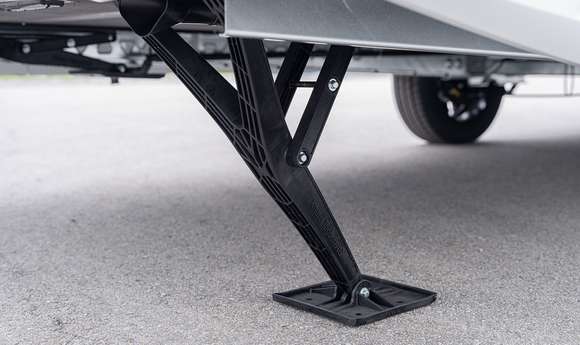

Integrated Supports
Perfect stability even under difficult conditions is provided by the integrated heavy‐duty supports.

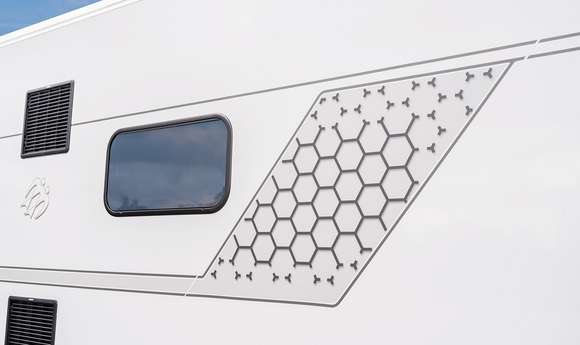

Innovative Design
The dynamic, progressive exterior design with discreet foil graphics and side panels in Campovolo grey is framed by an LED signature.
| Basic Equipment | |
|---|---|
| Total length incl. drawbar (cm) | 698 |
| Usable length (cm) | 492 |
| Width (outside) (cm) | 231 |
| Width (inside) (cm) | 216 |
| Height (outside) (cm) | 272 |
| Height (inside) (cm) | 202 |
| Awning dimensions (cm) (Note: H139) | 921 |
| Effective vehicle mass including legally required basic equipment (kg) (Note: H717) | 1349 |
| Technically maximum authorised laden mass (kg) (Note: H717) | 1500 |
| Maximum payload (kg) (Note: H717) | 151 |
| Rim size | 6,5 J x 17 |
| Beds (Note: H141) | 4 |
| Max. number of beds (Note: H142) | 4 |
| Body | |
| Total number of hinged windows (Note: H716) | 5 |
| Body door (width x height) | 60 x 181 |
| Wall thickness, roof (mm) | 32 |
| Wall thickness, side wall (mm) | 31 |
| Wall thickness, floor (mm) | 38 |
| Living Area | |
| Bed size, front (cm) | 200 x 85; 188 x 85 |
| Bed size, rear (cm) | 198 x 114/126 |
| Water | |
| Fresh water volume in liters | 45 |
| Kitchen | |
| Refrigerator (ltr.) | 98 |
| Electrical Supply | |
| Number of 230 V socket(s) | 5 |
| Chassis / Load Increase | |
| Chassis with trailing arm axle | |
| KNOTT.ANS - self-adjusting brake | |
| Mono-axle | |
| Support wheel with integrated support load display | |
| Stand fixation with crank supports | |
| Stabiliser safety coupling (Dependency: ABH14316) | |
| Hydraulic wheel shock absorbers | |
| Automatic reverse drive | |
| Servo-assisted handbrake | |
| 17" alloy rims - mono-axle, black gloss front-polished in exclusive KNAUS design (Dependency: ABH14324) | |
| Spare tyre holder in the gas locker | |
| Doors | |
| Body door: KNAUS PREMIUM | |
| Multifunctional bag in KNAUS design | |
| Insect screen door | |
| One-key locking system | |
| Service Hatches / Garage Doors | |
| Gas locker with outer hatch, equippable with 2 x 11 kg gas bottles | |
| Service hatch 34.9 x 29.6 cm, bow left | |
| Service hatch 100 x 40.5 cm, bow right | |
| KNAUS ServiceBox | |
| Windows / Roof Hoods / Ventilation | |
| Frame window SEITZ S7P | |
| Roof hood 40 x 40 cm with insect screen and blackout, clear (bow) (Dependent on layout) | |
| Hinged window (rear) | |
| Roof hood 40 x 40 cm with insect screen and blackout, clear (rear) | |
| Roof hood 28 x 28 cm with insect screen, (toilet room) (Dependent on layout) (Dependency: ABH14368) | |
| Materials / Vehicle Graphics | |
| GRP roof with reduced hail sensitivity | |
| Side walls in smooth sheet metal - mono-axle | |
| Side walls in Campovolo Grey - mono-axle | |
| Self-supporting Fibre-Frame, roof and floor construction with Maxi PS insulation | |
| Aluminium plain sheet at bow and rear | |
| KNAUS emblems front and rear, black/chrome | |
| Lighting / Technology | |
| Awning light LED | |
| Third brake light in exclusive MARKEN design (across entire vehicle width - integrated / homogeneously illuminated) | |
| KNAUS CATEYE evolution – taillight with exclusive night signature and dynamic indicator in LED technology | |
| Furniture / Surfaces | |
| Ventilated cabinets and cupboards | |
| Storage locker hatches with soft-close function | |
| Kitchen drawers with soft-close function | |
| Furniture decor: Samoa Dark | |
| Heel decor: Matara Teak | |
| Hard-wearing vinyl flooring with Midland Oak | |
| Living / Sleeping / Upholstery And Fabrics | |
| Paravent als Raumtrenner zum Schlafraum (Dependent on layout) | |
| Wall cladding above bed | |
| Fabric covering on ceiling | |
| EvoPore HRC mattress, fixed beds only | |
| Upholstery selection: ELEGANT SILVER | |
| Kitchen / Bathroom | |
| 3-burner cooker with electric ignition, cast iron grate and glass cover (Dependency: ABH14398) | |
| Foldable worktop extension on kitchen block | |
| Refrigerator 98 ltr. (Note: H128) | |
| Automatic energy selection for refrigerator (AES) | |
| High-quality KNAUS kitchen fittings | |
| Cassette toilet DOMETIC swivelling | |
| Folding clothes rail in the toilet room or shower | |
| KNAUS washbasin fitting | |
| Heating / Air Conditioning / Gas Supply / Water Supply | |
| Gas system 30 mbar (Dependency: ABH14412) | |
| Gas hose version D/AT/ES/FI/BE/IT/NL/DK | |
| Gas regulator version D/AT/ES/FI/BE/IT/NL/DK | |
| Heating TRUMA Combi 4 | |
| TRUMA CP-Plus digital heating control panel | |
| Water supply with submerged pump | |
| Hot water supply with single-lever mixer tap | |
| Central waste water pipe laying, one external drain under floor | |
| Fresh water tank 45 ltr., fixed installation | |
| "bluuwater" water filter system | |
| Level indicator for fresh water tank | |
| Electronics / Multimedia / Safety | |
| Electric coupling plug to the towing vehicle, Jäger 13-pin | |
| Interior lighting in LED technology | |
| Intelligent charger with 25 A charging power | |
| Control panel | |
| 230 V SCHUKO sockets "D/AT/ES/FI/BE/IT/NL/DK/SE" version | |
| Atmospheric ambient lighting | |
| Schwanenhalsleuchten | |
| TV preparation with socket and cable laying / feed-through | |
| Miscellaneous | |
| Operating instruction (German) | |
| Accessories | |
| 10-year leak-proofness guarantee | |
| MediKit voucher (Note: H137) | |
| SilwyREADY |
| kg | ||
|---|---|---|
| CHASSIS / LOAD INCREASE | ||
| Trailer Control - Anti-skid system | 9 | - |
| Drawbar cover | 4 | - |
| Winter cover for gas locker in KNAUS design | 2 | - |
| Levelling system | 1 | - |
| Load increase to 1.350 kg (1.500 kg chassis) | - | - |
| Load increase to 1.400 kg (1.500 kg chassis) | - | - |
| Load increase to 1.500 kg (1.500 kg chassis) | - | - |
| Load increase to 1.600 kg (2.000 kg chassis) | 30 | - |
| Load increase to 1.700 kg (2.000 kg chassis) | 30 | - |
| Bicycle carrier for 2 bikes, drawbar: THULE Caravan SUPERB | 10 | - |
| TRUMA Mover XT (Dependency: ABH23850) | 24 | - |
| Spare tyre 17'' alloy rim in KNAUS design incl. jack (Dependency: ABH14344) | 31 | - |
| Spare tyre holder for 17'' alloy rim in KNAUS design, mounted on underbody (Dependency: ABH21557) | 7 | - |
| SERVICE HATCHES / GARAGE DOORS | ||
| Service hatch 70 x 30.5 cm, bow left | 1 | - |
| Service hatch 70 x 30.5 cm, rear left (Dependency: ABH30115) | 1 | - |
| Service hatch 100 x 30.5 cm, rear left (Dependency: ABH30117) | 2 | - |
| WINDOWS / ROOF HOODS / VENTILATION | ||
| Hinged window (bow) | 6 | - |
| Roof hood (lift-tilt) 96 x 65 cm with insect screen and blackout (rear) | 9 | - |
| Hinged window 52 x 50 cm with insect screen and blackout, toilet room | 6 | - |
| LIGHTING / TECHNOLOGY | ||
| Awning light with motion sensor LED (Dependency: ABH21561) | - | - |
| LED outline lighting | 2 | - |
| LIVING / SLEEPING / UPHOLSTERY AND FABRICS | ||
| Flexible table shifting function | 4 | - |
| EvoPore HRC mattress incl. WaterGEL topper, fixed beds only | 6 | - |
| KNAUS comfort bed - EvoPore HRC mattress incl. WaterGEL overlay on plate spring slatted frame | 6 | - |
| Rollable slatted frame for single beds | 4 | - |
| Fitted sheet set, precisely fitting for the mattress shape - for 2 beds (fixed beds) | 1 | - |
| Upholstery selection: BRIGHT GRANIT | - | - |
| Upholstery selection: MODERN STONE | - | - |
| Upholstery selection: SOFT TAUPE | - | - |
| COZY HOME Package, colour selection PEACH | 3 | - |
| COZY HOME Package, colour selection STONE | 3 | - |
| COZY HOME Package, colour selection AVOCADO | 3 | - |
| COZY HOME Package, colour selection AQUA | 3 | - |
| COZY HOME Package, colour selection MAGNOLIA | 3 | - |
| COZY HOME Package, colour selection EARTH | 3 | - |
| Carpet floor - body length up to 460 | 6 | - |
| KITCHEN / BATHROOM | ||
| Extractor fan | 5 | - |
| Shower expansion: shower mixer, shower bar/holder, shower hose | - | - |
| Clothes rail in the T-room: | 1 | - |
| HEATING / AIR CONDITIONING / GAS SUPPLY / WATER SUPPLY | ||
| Remote display DuoC (Ice Ex integrated) (Dependency: ABH14414) | - | - |
| TRUMA MonoControl CS (incl. gas filter) (Dependency: ABH14416) | 1 | - |
| TRUMA DuoControl CS (incl. gas filter) (Dependency: ABH14416) | 1 | - |
| Gas detector | - | - |
| Smoke detector | - | - |
| External gas socket | 1 | - |
| Heating TRUMA Combi E (Dependency: ABH21563) | 1 | - |
| ALDE hot water heating (Dependency: ABH30324) | 39 | - |
| Electric underfloor heating - up to body length 550 | 11 | - |
| ALDE hot water underfloor heating (Dependency: ABH14436) | 10 | - |
| Heating control panel ALDE LCD (Dependency: ABH14436) | - | - |
| Air conditioning DOMETIC Freshjet 2200 (OEM) (Dependency: ABH14440, Note: H145) | 29 | - |
| Warmluftausströmer für Vorzelt - ALDE (Dependency: ABH14436) | 1 | - |
| Vorzelt Warmluftset - Truma (Dependency: ABH30179) | - | - |
| Waste water tank 25 ltr., rollable | 4 | - |
| City water connection | 2 | - |
| ELECTRONICS / MULTIMEDIA / SAFETY | ||
| Combi external socket (electricity + TV) | - | - |
| Touch-Control-Panel with intuitive operating concept of networked components, incl. indoor and outdoor temperature sensor instead of standard Control-Panel (Dependency: ABH21567) | - | - |
| Socket plus Package | - | - |
| Lithium-ion board battery (Dependency: ABH14454) | 12 | - |
| AGM battery, suitable for solar technology (Dependency: ABH14456) | 24 | - |
| SAT system CARO® + Premium (Dependency: ABH14458, ABH23852, Note: H145) | 17 | - |
| 27" SMART TV set with HD tuner (Dependency: ABH14460, Note: H145) | 4 | - |
| TV holder | 2 | - |
| KNAUS Bluetooth sound system | 2 | - |
| Velocate® GPS tracker (Note: H146) | - | - |
| Velocate® LIFETIME license with unlimited, personal, EU-wide tracking (Dependency: ABH14462) | - | - |
| Velocate® sensors (gas, temperature, motion) (Dependency: ABH14464) | - | - |
| AWNING / AWNING ACCESSORIES | ||
| Awning 355 x 250 cm - on-roof mounting, white (Dependency: ABH21570, ABH23852) | 28 | - |
| Awning 355 x 250 cm - on-roof mounting, anthracite (Dependency: ABH14374, ABH23852) | 28 | - |
| MISCELLANEOUS | ||
| MOT and registration document | - | - |
| ACCESSORIES | ||
| Breakdown service set | 2 | - |
| Winter-Paket (55 kg) | |
|---|---|
| Winter cover for gas locker in KNAUS design | - |
| ALDE hot water underfloor heating | - |
| ALDE hot water heating | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| TV Package 27'' (23 kg) | |
| SAT system CARO® + Premium | - |
| Combi external socket (electricity + TV) | - |
| TV holder | - |
| 27" SMART TV set with HD tuner | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Energy-Basic Package | |
| Intelligent charger with 25 A charging power | - |
| Touch-Control-Panel with intuitive operating concept of networked components, incl. indoor and outdoor temperature sensor instead of standard Control-Panel | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Connected-Security-Package for velocate® GPS-Tracker | |
| velocate® GPS tracker | - |
| velocate® LIFETIME license with unlimited, personal, EU-wide tracking | - |
| velocate® sensors (gas, temperature, motion) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Basic Equipment | |
|---|---|
| Total length incl. drawbar (cm) | 734 |
| Usable length (cm) | 528 |
| Width (outside) (cm) | 231 |
| Width (inside) (cm) | 216 |
| Height (outside) (cm) | 272 |
| Height (inside) (cm) | 202 |
| Awning dimensions (cm) (Note: H139) | 957 |
| Effective vehicle mass including legally required basic equipment (kg) (Note: H717) | 1504 |
| Technically maximum authorised laden mass (kg) (Note: H717) | 1700 |
| Maximum payload (kg) (Note: H717) | 196 |
| Rim size | 6,5 J x 17 |
| Beds (Note: H141) | 4 |
| Max. number of beds (Note: H142) | 4 |
| Body | |
| Total number of hinged windows (Note: H716) | 5 |
| Body door (width x height) | 60 x 181 |
| Wall thickness, roof (mm) | 32 |
| Wall thickness, side wall (mm) | 31 |
| Wall thickness, floor (mm) | 38 |
| Living Area | |
| Bed size, front (cm) | 215 x 82/72; 193 x 94/84 |
| Bed size, rear (cm) | 190 x 147 |
| Water | |
| Fresh water volume in liters | 45 |
| Kitchen | |
| Refrigerator (ltr.) | 133 |
| Electrical Supply | |
| Number of 230 V socket(s) | 6 |
| Chassis / Load Increase | |
| Chassis with trailing arm axle | |
| KNOTT.ANS - self-adjusting brake | |
| Mono-axle | |
| Support wheel with integrated support load display | |
| Stand fixation with crank supports | |
| Stabiliser safety coupling (Dependency: ABH14316) | |
| Hydraulic wheel shock absorbers | |
| Automatic reverse drive | |
| Servo-assisted handbrake | |
| Load increase to 1.700 kg (2.000 kg chassis) | |
| 17" alloy rims - mono-axle, black gloss front-polished in exclusive KNAUS design (Dependency: ABH14324) | |
| Spare tyre holder in the gas locker | |
| Doors | |
| Body door: KNAUS PREMIUM | |
| Multifunctional bag in KNAUS design | |
| Insect screen door | |
| One-key locking system | |
| Service Hatches / Garage Doors | |
| Gas locker with outer hatch, equippable with 2 x 11 kg gas bottles | |
| Service hatch 34.9 x 29.6 cm, bow left | |
| Service hatch 100 x 40.5 cm, bow right | |
| KNAUS ServiceBox | |
| Windows / Roof Hoods / Ventilation | |
| Frame window SEITZ S7P | |
| Roof hood 40 x 40 cm with insect screen and blackout, clear (bow) (Dependent on layout) | |
| Hinged window (rear) | |
| Roof hood 40 x 40 cm with insect screen and blackout, clear (rear) | |
| Roof hood 28 x 28 cm with insect screen, (toilet room) (Dependent on layout) (Dependency: ABH14368) | |
| Materials / Vehicle Graphics | |
| GRP roof with reduced hail sensitivity | |
| Side walls in smooth sheet metal - mono-axle | |
| Side walls in Campovolo Grey - mono-axle | |
| Self-supporting Fibre-Frame, roof and floor construction with Maxi PS insulation | |
| Aluminium plain sheet at bow and rear | |
| KNAUS emblems front and rear, black/chrome | |
| Lighting / Technology | |
| Awning light LED | |
| Third brake light in exclusive MARKEN design (across entire vehicle width - integrated / homogeneously illuminated) | |
| KNAUS CATEYE evolution – taillight with exclusive night signature and dynamic indicator in LED technology | |
| Furniture / Surfaces | |
| Ventilated cabinets and cupboards | |
| Storage locker hatches with soft-close function | |
| Kitchen drawers with soft-close function | |
| Furniture decor: Samoa Dark | |
| Heel decor: Matara Teak | |
| Hard-wearing vinyl flooring with Midland Oak | |
| Living / Sleeping / Upholstery And Fabrics | |
| Paravent als Raumtrenner zum Schlafraum (Dependent on layout) | |
| Wall cladding above bed | |
| Fabric covering on ceiling | |
| EvoPore HRC mattress, fixed beds only | |
| Upholstery selection: ELEGANT SILVER | |
| Kitchen / Bathroom | |
| 3-burner cooker with electric ignition, cast iron grate and glass cover (Dependency: ABH14398) | |
| Foldable worktop extension on kitchen block | |
| Refrigerator 133 ltr. (Dependent on layout) | |
| Automatic energy selection for refrigerator (AES) | |
| High-quality KNAUS kitchen fittings | |
| Bench toilet Thetford (Dependent on layout) | |
| Folding clothes rail in the toilet room or shower | |
| KNAUS washbasin fitting | |
| Heating / Air Conditioning / Gas Supply / Water Supply | |
| Gas system 30 mbar (Dependency: ABH14412) | |
| Gas hose version D/AT/ES/FI/BE/IT/NL/DK | |
| Gas regulator version D/AT/ES/FI/BE/IT/NL/DK | |
| Heating TRUMA Combi 4 | |
| TRUMA CP-Plus digital heating control panel | |
| Water supply with submerged pump | |
| Hot water supply with single-lever mixer tap | |
| Central waste water pipe laying, one external drain under floor | |
| Fresh water tank 45 ltr., fixed installation | |
| "bluuwater" water filter system | |
| Level indicator for fresh water tank | |
| Electronics / Multimedia / Safety | |
| Electric coupling plug to the towing vehicle, Jäger 13-pin | |
| Interior lighting in LED technology | |
| Intelligent charger with 25 A charging power | |
| Control panel | |
| 230 V SCHUKO sockets "D/AT/ES/FI/BE/IT/NL/DK/SE" version | |
| Atmospheric ambient lighting | |
| Schwanenhalsleuchten | |
| TV preparation with socket and cable laying / feed-through | |
| Miscellaneous | |
| Operating instruction (German) | |
| Accessories | |
| 10-year leak-proofness guarantee | |
| MediKit voucher (Note: H137) | |
| SilwyREADY |
| kg | ||
|---|---|---|
| CHASSIS / LOAD INCREASE | ||
| Trailer Control - Anti-skid system | 9 | - |
| Drawbar cover | 4 | - |
| Winter cover for gas locker in KNAUS design | 2 | - |
| Levelling system | 1 | - |
| Load increase to 1.600 kg (2.000 kg chassis) | - | - |
| Load increase to 1.800 kg (2.000 kg chassis) (Dependency: ABH14318) | - | - |
| Load increase to 1.900 kg (2.000 kg chassis) (Dependency: ABH21040) | - | - |
| Load increase to 2.000 kg (2.000 kg chassis) (Dependency: ABH21040) | - | - |
| Bicycle carrier for 2 bikes, drawbar: THULE Caravan SUPERB | 10 | - |
| TRUMA Mover XT (Dependency: ABH23850) | 24 | - |
| Spare tyre 17'' alloy rim in KNAUS design incl. jack (Dependency: ABH14344) | 31 | - |
| Spare tyre holder for 17'' alloy rim in KNAUS design, mounted on underbody (Dependency: ABH21557) | 7 | - |
| SERVICE HATCHES / GARAGE DOORS | ||
| Service hatch 70 x 30.5 cm, bow left | 1 | - |
| Service hatch 100 x 30.5 cm, rear left (Dependency: ABH30117) | 2 | - |
| Service hatch 70 x 30.5 cm, rear right | 1 | - |
| WINDOWS / ROOF HOODS / VENTILATION | ||
| Hinged window (bow) | 6 | - |
| Roof hood (lift-tilt) 96 x 65 cm with insect screen and blackout (rear) | 9 | - |
| Hinged window 52 x 50 cm with insect screen and blackout, toilet room | 6 | - |
| LIGHTING / TECHNOLOGY | ||
| Awning light with motion sensor LED (Dependency: ABH21561) | - | - |
| LED outline lighting | 2 | - |
| LIVING / SLEEPING / UPHOLSTERY AND FABRICS | ||
| Flexible table shifting function | 4 | - |
| EvoPore HRC mattress incl. WaterGEL topper, fixed beds only | 6 | - |
| KNAUS comfort bed - EvoPore HRC mattress incl. WaterGEL overlay on plate spring slatted frame | 6 | - |
| Rollable slatted frame for single beds | 4 | - |
| Fitted sheet set, precisely fitting for the mattress shape - for 2 beds (fixed beds) | 1 | - |
| Upholstery selection: BRIGHT GRANIT | - | - |
| Upholstery selection: MODERN STONE | - | - |
| Upholstery selection: SOFT TAUPE | - | - |
| COZY HOME Package, colour selection PEACH | 3 | - |
| COZY HOME Package, colour selection STONE | 3 | - |
| COZY HOME Package, colour selection AVOCADO | 3 | - |
| COZY HOME Package, colour selection AQUA | 3 | - |
| COZY HOME Package, colour selection MAGNOLIA | 3 | - |
| COZY HOME Package, colour selection EARTH | 3 | - |
| Carpet floor - body length 470 to 590 | 6 | - |
| KITCHEN / BATHROOM | ||
| Gas oven incl. grill function (installation location in the kitchen block) (Dependency: ABH14406) | 13 | - |
| Extractor fan | 5 | - |
| Microwave (in kitchen block) (Dependency: ABH14410) | - | - |
| Shower expansion: shower mixer, shower bar/holder, shower hose | - | - |
| Clothes rail in the T-room: | 1 | - |
| HEATING / AIR CONDITIONING / GAS SUPPLY / WATER SUPPLY | ||
| Remote display DuoC (Ice Ex integrated) (Dependency: ABH14414) | - | - |
| TRUMA MonoControl CS (incl. gas filter) (Dependency: ABH14416) | 1 | - |
| TRUMA DuoControl CS (incl. gas filter) (Dependency: ABH14416) | 1 | - |
| Gas detector | - | - |
| Smoke detector | - | - |
| External gas socket | 1 | - |
| Heating TRUMA Combi E (Dependency: ABH21563) | 1 | - |
| ALDE hot water heating (Dependency: ABH30324) | 39 | - |
| Electric underfloor heating - up to body length 550 | 11 | - |
| ALDE hot water underfloor heating (Dependency: ABH14436) | 10 | - |
| Heating control panel ALDE LCD (Dependency: ABH14436) | - | - |
| Air conditioning DOMETIC Freshjet 2200 (OEM) (Dependency: ABH14440, Note: H145) | 29 | - |
| Warmluftausströmer für Vorzelt - ALDE (Dependency: ABH14436) | 1 | - |
| Vorzelt Warmluftset - Truma (Dependency: ABH30179) | - | - |
| Waste water tank 25 ltr., rollable | 4 | - |
| City water connection | 2 | - |
| ELECTRONICS / MULTIMEDIA / SAFETY | ||
| Combi external socket (electricity + TV) | - | - |
| Touch-Control-Panel with intuitive operating concept of networked components, incl. indoor and outdoor temperature sensor instead of standard Control-Panel (Dependency: ABH21567) | - | - |
| Socket plus Package | - | - |
| Lithium-ion board battery (Dependency: ABH14454) | 12 | - |
| AGM battery, suitable for solar technology (Dependency: ABH14456) | 24 | - |
| SAT system CARO® + Premium (Dependency: ABH14458, ABH23852, Note: H145) | 17 | - |
| 27" SMART TV set with HD tuner (Dependency: ABH14460, Note: H145) | 4 | - |
| TV holder | 2 | - |
| KNAUS Bluetooth sound system | 2 | - |
| Velocate® GPS tracker (Note: H146) | - | - |
| Velocate® LIFETIME license with unlimited, personal, EU-wide tracking (Dependency: ABH14462) | - | - |
| Velocate® sensors (gas, temperature, motion) (Dependency: ABH14464) | - | - |
| AWNING / AWNING ACCESSORIES | ||
| Awning 405 x 250 cm - on-roof mounting, white (Dependency: ABH21570, ABH23852) | 31 | - |
| Awning 405 x 250 cm - on-roof mounting, anthracite (Dependency: ABH14374, ABH23852) | 31 | - |
| MISCELLANEOUS | ||
| MOT and registration document | - | - |
| ACCESSORIES | ||
| Breakdown service set | 2 | - |
| Winter-Paket (55 kg) | |
|---|---|
| Winter cover for gas locker in KNAUS design | - |
| ALDE hot water underfloor heating | - |
| ALDE hot water heating | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| TV Package 27'' (23 kg) | |
| SAT system CARO® + Premium | - |
| Combi external socket (electricity + TV) | - |
| TV holder | - |
| 27" SMART TV set with HD tuner | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Energy-Basic Package | |
| Intelligent charger with 25 A charging power | - |
| Touch-Control-Panel with intuitive operating concept of networked components, incl. indoor and outdoor temperature sensor instead of standard Control-Panel | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Connected-Security-Package for velocate® GPS-Tracker | |
| velocate® GPS tracker | - |
| velocate® LIFETIME license with unlimited, personal, EU-wide tracking | - |
| velocate® sensors (gas, temperature, motion) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Basic Equipment | |
|---|---|
| Total length incl. drawbar (cm) | 734 |
| Usable length (cm) | 528 |
| Width (outside) (cm) | 231 |
| Width (inside) (cm) | 216 |
| Height (outside) (cm) | 272 |
| Height (inside) (cm) | 202 |
| Awning dimensions (cm) (Note: H139) | 957 |
| Effective vehicle mass including legally required basic equipment (kg) (Note: H717) | 1504 |
| Technically maximum authorised laden mass (kg) (Note: H717) | 1700 |
| Maximum payload (kg) (Note: H717) | 196 |
| Rim size | 6,5 J x 17 |
| Beds (Note: H141) | 4 |
| Max. number of beds (Note: H142) | 4 |
| Body | |
| Total number of hinged windows (Note: H716) | 5 |
| Body door (width x height) | 70 x 181 |
| Wall thickness, roof (mm) | 32 |
| Wall thickness, side wall (mm) | 31 |
| Wall thickness, floor (mm) | 38 |
| Living Area | |
| Bed size, front (cm) | 212 x 140 |
| Bed size, rear (cm) | 190 x 147 |
| Water | |
| Fresh water volume in liters | 45 |
| Kitchen | |
| Refrigerator (ltr.) | 133 |
| Electrical Supply | |
| Number of 230 V socket(s) | 6 |
| Chassis / Load Increase | |
| Chassis with trailing arm axle | |
| KNOTT.ANS - self-adjusting brake | |
| Mono-axle | |
| Support wheel with integrated support load display | |
| Stand fixation with crank supports | |
| Stabiliser safety coupling (Dependency: ABH14316) | |
| Hydraulic wheel shock absorbers | |
| Automatic reverse drive | |
| Servo-assisted handbrake | |
| Load increase to 1.700 kg (2.000 kg chassis) | |
| 17" alloy rims - mono-axle, black gloss front-polished in exclusive KNAUS design (Dependency: ABH14324) | |
| Spare tyre holder in the gas locker | |
| Doors | |
| Body door: KNAUS PREMIUM | |
| Multifunctional bag in KNAUS design | |
| Insect screen door | |
| One-key locking system | |
| Service Hatches / Garage Doors | |
| Gas locker with outer hatch, equippable with 2 x 11 kg gas bottles | |
| Service hatch 34.9 x 29.6 cm, bow left | |
| KNAUS ServiceBox | |
| Windows / Roof Hoods / Ventilation | |
| Frame window SEITZ S7P | |
| Roof hood 40 x 40 cm with insect screen and blackout, clear (bow) (Dependent on layout) | |
| Hinged window (rear) | |
| Roof hood 40 x 40 cm with insect screen and blackout, clear (rear) | |
| Mushroom fan (toilet room) | |
| Hinged window 52 x 50 cm with insect screen and blackout, toilet room | |
| Materials / Vehicle Graphics | |
| GRP roof with reduced hail sensitivity | |
| Side walls in smooth sheet metal - mono-axle | |
| Side walls in Campovolo Grey - mono-axle | |
| Self-supporting Fibre-Frame, roof and floor construction with Maxi PS insulation | |
| Aluminium plain sheet at bow and rear | |
| KNAUS emblems front and rear, black/chrome | |
| Lighting / Technology | |
| Awning light LED | |
| Third brake light in exclusive MARKEN design (across entire vehicle width - integrated / homogeneously illuminated) | |
| KNAUS CATEYE evolution – taillight with exclusive night signature and dynamic indicator in LED technology | |
| Furniture / Surfaces | |
| Ventilated cabinets and cupboards | |
| Storage locker hatches with soft-close function | |
| Kitchen drawers with soft-close function | |
| Furniture decor: Samoa Dark | |
| Heel decor: Matara Teak | |
| Hard-wearing vinyl flooring with Midland Oak | |
| Living / Sleeping / Upholstery And Fabrics | |
| Textile room separator with high-quality aluminium profile and intuitive magnetic fastening: | |
| Wall cladding above bed | |
| Fabric covering on ceiling | |
| EvoPore HRC mattress, fixed beds only | |
| Upholstery selection: ELEGANT SILVER | |
| Kitchen / Bathroom | |
| 3-burner cooker with electric ignition, cast iron grate and glass cover (Dependency: ABH14398) | |
| Foldable worktop extension on kitchen block | |
| Refrigerator 133 ltr. (Dependent on layout) | |
| Automatic energy selection for refrigerator (AES) | |
| High-quality KNAUS kitchen fittings | |
| Bench toilet Thetford (Dependent on layout) | |
| Folding clothes rail in the toilet room or shower | |
| KNAUS washbasin fitting | |
| Heating / Air Conditioning / Gas Supply / Water Supply | |
| Gas system 30 mbar (Dependency: ABH14412) | |
| Gas hose version D/AT/ES/FI/BE/IT/NL/DK | |
| Gas regulator version D/AT/ES/FI/BE/IT/NL/DK | |
| Heating TRUMA Combi 4 | |
| TRUMA CP-Plus digital heating control panel | |
| Water supply with submerged pump | |
| Hot water supply with single-lever mixer tap | |
| Central waste water pipe laying, one external drain under floor | |
| Fresh water tank 45 ltr., fixed installation | |
| "bluuwater" water filter system | |
| Level indicator for fresh water tank | |
| Electronics / Multimedia / Safety | |
| Electric coupling plug to the towing vehicle, Jäger 13-pin | |
| Interior lighting in LED technology | |
| Intelligent charger with 25 A charging power | |
| Control panel | |
| 230 V SCHUKO sockets "D/AT/ES/FI/BE/IT/NL/DK/SE" version | |
| Atmospheric ambient lighting | |
| Schwanenhalsleuchten | |
| TV preparation with socket and cable laying / feed-through | |
| Miscellaneous | |
| Operating instruction (German) | |
| Accessories | |
| 10-year leak-proofness guarantee | |
| MediKit voucher (Note: H137) | |
| SilwyREADY |
| kg | ||
|---|---|---|
| CHASSIS / LOAD INCREASE | ||
| Trailer Control - Anti-skid system | 9 | - |
| Drawbar cover | 4 | - |
| Winter cover for gas locker in KNAUS design | 2 | - |
| Levelling system | 1 | - |
| Load increase to 1.600 kg (2.000 kg chassis) | - | - |
| Load increase to 1.800 kg (2.000 kg chassis) (Dependency: ABH14318) | - | - |
| Load increase to 1.900 kg (2.000 kg chassis) (Dependency: ABH21040) | - | - |
| Load increase to 2.000 kg (2.000 kg chassis) (Dependency: ABH21040) | - | - |
| Bicycle carrier for 2 bikes, drawbar: THULE Caravan SUPERB | 10 | - |
| TRUMA Mover XT (Dependency: ABH23850) | 24 | - |
| Spare tyre 17'' alloy rim in KNAUS design incl. jack (Dependency: ABH14344) | 31 | - |
| Spare tyre holder for 17'' alloy rim in KNAUS design, mounted on underbody (Dependency: ABH21557) | 7 | - |
| SERVICE HATCHES / GARAGE DOORS | ||
| Service hatch 100 x 30.5 cm, rear left (Dependency: ABH30117) | 2 | - |
| Service hatch 70 x 30.5 cm, rear right | 1 | - |
| WINDOWS / ROOF HOODS / VENTILATION | ||
| Hinged window (bow) | 6 | - |
| Roof hood (lift-tilt) 96 x 65 cm with insect screen and blackout (rear) | 9 | - |
| LIGHTING / TECHNOLOGY | ||
| Awning light with motion sensor LED (Dependency: ABH21561) | - | - |
| LED outline lighting | 2 | - |
| LIVING / SLEEPING / UPHOLSTERY AND FABRICS | ||
| Flexible table shifting function | 4 | - |
| EvoPore HRC mattress incl. WaterGEL topper, fixed beds only | 6 | - |
| KNAUS comfort bed - EvoPore HRC mattress incl. WaterGEL overlay on plate spring slatted frame | 6 | - |
| Fitted sheet set, precisely fitting for the mattress shape - for 2 beds (fixed beds) | 1 | - |
| Upholstery selection: BRIGHT GRANIT | - | - |
| Upholstery selection: MODERN STONE | - | - |
| Upholstery selection: SOFT TAUPE | - | - |
| COZY HOME Package, colour selection PEACH | 3 | - |
| COZY HOME Package, colour selection STONE | 3 | - |
| COZY HOME Package, colour selection AVOCADO | 3 | - |
| COZY HOME Package, colour selection AQUA | 3 | - |
| COZY HOME Package, colour selection MAGNOLIA | 3 | - |
| COZY HOME Package, colour selection EARTH | 3 | - |
| Carpet floor - body length 470 to 590 | 6 | - |
| KITCHEN / BATHROOM | ||
| Gas oven incl. grill function (installation location in the kitchen block) (Dependency: ABH14406) | 13 | - |
| Extractor fan | 5 | - |
| Microwave (in kitchen block) (Dependency: ABH14410) | - | - |
| Shower expansion: shower mixer, shower bar/holder, shower hose | - | - |
| Clothes rail in the T-room: | 1 | - |
| HEATING / AIR CONDITIONING / GAS SUPPLY / WATER SUPPLY | ||
| Remote display DuoC (Ice Ex integrated) (Dependency: ABH14414) | - | - |
| TRUMA MonoControl CS (incl. gas filter) (Dependency: ABH14416) | 1 | - |
| TRUMA DuoControl CS (incl. gas filter) (Dependency: ABH14416) | 1 | - |
| Gas detector | - | - |
| Smoke detector | - | - |
| External gas socket | 1 | - |
| Heating TRUMA Combi E (Dependency: ABH21563) | 1 | - |
| ALDE hot water heating (Dependency: ABH30324) | 39 | - |
| Electric underfloor heating - up to body length 550 | 11 | - |
| ALDE hot water underfloor heating (Dependency: ABH14436) | 10 | - |
| Heating control panel ALDE LCD (Dependency: ABH14436) | - | - |
| Air conditioning DOMETIC Freshjet 2200 (OEM) (Dependency: ABH14440, Note: H145) | 29 | - |
| Warmluftausströmer für Vorzelt - ALDE (Dependency: ABH14436) | 1 | - |
| Vorzelt Warmluftset - Truma (Dependency: ABH30179) | - | - |
| Waste water tank 25 ltr., rollable | 4 | - |
| City water connection | 2 | - |
| ELECTRONICS / MULTIMEDIA / SAFETY | ||
| Combi external socket (electricity + TV) | - | - |
| Touch-Control-Panel with intuitive operating concept of networked components, incl. indoor and outdoor temperature sensor instead of standard Control-Panel (Dependency: ABH21567) | - | - |
| Socket plus Package | - | - |
| Lithium-ion board battery (Dependency: ABH14454) | 12 | - |
| AGM battery, suitable for solar technology (Dependency: ABH14456) | 24 | - |
| SAT system CARO® + Premium (Dependency: ABH14458, ABH23852, Note: H145) | 17 | - |
| 27" SMART TV set with HD tuner (Dependency: ABH14460, Note: H145) | 4 | - |
| TV holder | 2 | - |
| KNAUS Bluetooth sound system | 2 | - |
| Velocate® GPS tracker (Note: H146) | - | - |
| Velocate® LIFETIME license with unlimited, personal, EU-wide tracking (Dependency: ABH14462) | - | - |
| Velocate® sensors (gas, temperature, motion) (Dependency: ABH14464) | - | - |
| AWNING / AWNING ACCESSORIES | ||
| Awning 405 x 250 cm - on-roof mounting, white (Dependency: ABH21570, ABH23852) | 31 | - |
| Awning 405 x 250 cm - on-roof mounting, anthracite (Dependency: ABH14374, ABH23852) | 31 | - |
| MISCELLANEOUS | ||
| MOT and registration document | - | - |
| ACCESSORIES | ||
| Breakdown service set | 2 | - |
| Winter-Paket (55 kg) | |
|---|---|
| Winter cover for gas locker in KNAUS design | - |
| ALDE hot water underfloor heating | - |
| ALDE hot water heating | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| TV Package 27'' (23 kg) | |
| SAT system CARO® + Premium | - |
| Combi external socket (electricity + TV) | - |
| TV holder | - |
| 27" SMART TV set with HD tuner | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Energy-Basic Package | |
| Intelligent charger with 25 A charging power | - |
| Touch-Control-Panel with intuitive operating concept of networked components, incl. indoor and outdoor temperature sensor instead of standard Control-Panel | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Connected-Security-Package for velocate® GPS-Tracker | |
| velocate® GPS tracker | - |
| velocate® LIFETIME license with unlimited, personal, EU-wide tracking | - |
| velocate® sensors (gas, temperature, motion) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Basic Equipment | |
|---|---|
| Total length incl. drawbar (cm) | 758 |
| Usable length (cm) | 552 |
| Width (outside) (cm) | 231 |
| Width (inside) (cm) | 216 |
| Height (outside) (cm) | 272 |
| Height (inside) (cm) | 202 |
| Awning dimensions (cm) (Note: H139) | 981 |
| Effective vehicle mass including legally required basic equipment (kg) (Note: H717) | 1605 |
| Technically maximum authorised laden mass (kg) (Note: H717) | 1800 |
| Maximum payload (kg) (Note: H717) | 195 |
| Rim size | 6,5 J x 17 |
| Beds (Note: H141) | 5 |
| Max. number of beds (Note: H142) | 6 |
| Body | |
| Total number of hinged windows (Note: H716) | 7 |
| Body door (width x height) | 60 x 181 |
| Wall thickness, roof (mm) | 31 |
| Wall thickness, side wall (mm) | 31 |
| Wall thickness, floor (mm) | 38 |
| Living Area | |
| Bed size, front (cm) | 190 x 147 |
| Bed size, rear (cm) | 215 x 82/72; 193 x 94/84 |
| Water | |
| Fresh water volume in liters | 45 |
| Kitchen | |
| Refrigerator (ltr.) | 133 |
| Electrical Supply | |
| Number of 230 V socket(s) | 6 |
| Chassis / Load Increase | |
| Chassis with trailing arm axle | |
| KNOTT.ANS - self-adjusting brake | |
| Mono-axle | |
| Support wheel with integrated support load display | |
| Stand fixation with crank supports | |
| Stabiliser safety coupling (Dependency: ABH14316) | |
| Hydraulic wheel shock absorbers | |
| Automatic reverse drive | |
| Servo-assisted handbrake | |
| Load increase to 1.800 kg (2.000 kg chassis) (Dependency: ABH14318) | |
| 17" alloy rims - mono-axle, black gloss front-polished in exclusive KNAUS design (Dependency: ABH14324) | |
| Spare tyre holder in the gas locker | |
| Doors | |
| Body door: KNAUS PREMIUM | |
| Multifunctional bag in KNAUS design | |
| Insect screen door | |
| One-key locking system | |
| Service Hatches / Garage Doors | |
| Gas locker with outer hatch, equippable with 2 x 11 kg gas bottles | |
| Service hatch 34.9 x 29.6 cm, bow left | |
| Service hatch 100 x 40.5 cm, rear right | |
| KNAUS ServiceBox | |
| Windows / Roof Hoods / Ventilation | |
| Frame window SEITZ S7P | |
| Hinged window (bow) | |
| Roof hood (lift-tilt) 96 x 65 cm with insect screen and blackout (bow) | |
| Hinged window (rear) | |
| Roof hood 40 x 40 cm with insect screen and blackout, clear (rear) | |
| Roof hood 28 x 28 cm with insect screen, (toilet room) (Dependent on layout) (Dependency: ABH14368) |
| GRP roof with reduced hail sensitivity |
| Side walls in smooth sheet metal - mono-axle |
| Side walls in Campovolo Grey - mono-axle |
| Self-supporting Fibre-Frame, roof and floor construction with Maxi PS insulation |
| Aluminium plain sheet at bow and rear |
| KNAUS emblems front and rear, black/chrome |
| Lighting / Technology |
|---|
| Awning light LED |
| Third brake light in exclusive MARKEN design (across entire vehicle width - integrated / homogeneously illuminated) |
| KNAUS CATEYE evolution – taillight with exclusive night signature and dynamic indicator in LED technology |
| Furniture / Surfaces |
| Ventilated cabinets and cupboards |
| Storage locker hatches with soft-close function |
| Kitchen drawers with soft-close function |
| Furniture decor: Samoa Dark |
| Heel decor: Matara Teak |
| Hard-wearing vinyl flooring with Midland Oak |
| Living / Sleeping / Upholstery And Fabrics |
| Paravent als Raumtrenner zum Schlafraum (Dependent on layout) |
| Wall cladding above bed |
| Fabric covering on ceiling |
| EvoPore HRC mattress, fixed beds only |
| Upholstery selection: ELEGANT SILVER |
| Kitchen / Bathroom |
| 3-burner cooker with electric ignition, cast iron grate and glass cover (Dependency: ABH14398) |
| Foldable worktop extension on kitchen block |
| Refrigerator 133 ltr. (Dependent on layout) |
| Automatic energy selection for refrigerator (AES) |
| High-quality KNAUS kitchen fittings |
| Bench toilet Thetford (Dependent on layout) |
| Folding clothes rail in the toilet room or shower |
| KNAUS washbasin fitting |
| Heating / Air Conditioning / Gas Supply / Water Supply |
| Gas system 30 mbar (Dependency: ABH14412) |
| Gas hose version D/AT/ES/FI/BE/IT/NL/DK |
| Gas regulator version D/AT/ES/FI/BE/IT/NL/DK |
| Heating TRUMA Combi 4 |
| TRUMA CP-Plus digital heating control panel |
| Water supply with submerged pump |
| Hot water supply with single-lever mixer tap |
| Central waste water pipe laying, one external drain under floor |
| Fresh water tank 45 ltr., fixed installation |
| "bluuwater" water filter system |
| Level indicator for fresh water tank |
| Electronics / Multimedia / Safety |
| Electric coupling plug to the towing vehicle, Jäger 13-pin |
| Interior lighting in LED technology |
| Intelligent charger with 25 A charging power |
| Control panel |
| 230 V SCHUKO sockets "D/AT/ES/FI/BE/IT/NL/DK/SE" version |
| Atmospheric ambient lighting |
| Schwanenhalsleuchten |
| TV preparation with socket and cable laying / feed-through |
| Miscellaneous |
| Operating instruction (German) |
| Accessories |
| 10-year leak-proofness guarantee |
| MediKit voucher (Note: H137) |
| SilwyREADY |
| kg | ||
|---|---|---|
| CHASSIS / LOAD INCREASE | ||
| Trailer Control - Anti-skid system | 9 | - |
| Drawbar cover | 4 | - |
| Winter cover for gas locker in KNAUS design | 2 | - |
| Levelling system | 1 | - |
| Load increase to 1.600 kg (2.000 kg chassis) | - | - |
| Load increase to 1.700 kg (2.000 kg chassis) | - | - |
| Load increase to 1.900 kg (2.000 kg chassis) (Dependency: ABH21040) | - | - |
| Load increase to 2.000 kg (2.000 kg chassis) (Dependency: ABH21040) | - | - |
| Bicycle carrier for 2 bikes, drawbar: THULE Caravan SUPERB | 10 | - |
| TRUMA Mover XT (Dependency: ABH23850) | 24 | - |
| Spare tyre 17'' alloy rim in KNAUS design incl. jack (Dependency: ABH14344) | 31 | - |
| Spare tyre holder for 17'' alloy rim in KNAUS design, mounted on underbody (Dependency: ABH21557) | 7 | - |
| SERVICE HATCHES / GARAGE DOORS | ||
| Service hatch 70 x 30.5 cm, bow left | 1 | - |
| Service hatch 100 x 30.5 cm, bow right | 2 | - |
| Service hatch 70 x 40.5 cm, rear left | 2 | - |
| WINDOWS / ROOF HOODS / VENTILATION | ||
| Roof hood 40 x 40 cm with insect screen and blackout, clear (bow) (Dependent on layout) | 3 | - |
| Roof hood (lift-tilt) 96 x 65 cm with insect screen and blackout (rear) | 9 | - |
| Hinged window 52 x 50 cm with insect screen and blackout, toilet room | 6 | - |
| LIGHTING / TECHNOLOGY | ||
| Awning light with motion sensor LED (Dependency: ABH21561) | - | - |
| LED outline lighting | 2 | - |
| LIVING / SLEEPING / UPHOLSTERY AND FABRICS | ||
| Flexible table shifting function | 4 | - |
| EvoPore HRC mattress incl. WaterGEL topper, fixed beds only | 6 | - |
| KNAUS comfort bed - EvoPore HRC mattress incl. WaterGEL overlay on plate spring slatted frame | 6 | - |
| Rollable slatted frame for single beds | 4 | - |
| Fitted sheet set, precisely fitting for the mattress shape - for 2 beds (fixed beds) | 1 | - |
| Upholstery selection: BRIGHT GRANIT | - | - |
| Upholstery selection: MODERN STONE | - | - |
| Upholstery selection: SOFT TAUPE | - | - |
| COZY HOME Package, colour selection PEACH | 3 | - |
| COZY HOME Package, colour selection STONE | 3 | - |
| COZY HOME Package, colour selection AVOCADO | 3 | - |
| COZY HOME Package, colour selection AQUA | 3 | - |
| COZY HOME Package, colour selection MAGNOLIA | 3 | - |
| COZY HOME Package, colour selection EARTH | 3 | - |
| Carpet floor - body length 470 to 590 | 6 | - |
| KITCHEN / BATHROOM | ||
| Gas oven incl. grill function (installation location in the kitchen block) (Dependency: ABH14406) | 13 | - |
| Extractor fan | 5 | - |
| Microwave (in kitchen block) (Dependency: ABH14410) | - | - |
| Shower expansion: shower mixer, shower bar/holder, shower hose | - | - |
| Clothes rail in the T-room: | 1 | - |
| HEATING / AIR CONDITIONING / GAS SUPPLY / WATER SUPPLY | ||
| Remote display DuoC (Ice Ex integrated) (Dependency: ABH14414) | - | - |
| TRUMA MonoControl CS (incl. gas filter) (Dependency: ABH14416) | 1 | - |
| TRUMA DuoControl CS (incl. gas filter) (Dependency: ABH14416) | 1 | - |
| Gas detector | - | - |
| Smoke detector | - | - |
| External gas socket | 1 | - |
| Heating TRUMA Combi E (Dependency: ABH21563) | 1 | - |
| ALDE hot water heating (Dependency: ABH30324) | 39 | - |
| Electric underfloor heating - up to body length 550 | 11 | - |
| ALDE hot water underfloor heating (Dependency: ABH14436) | 10 | - |
| Heating control panel ALDE LCD (Dependency: ABH14436) | - | - |
| Air conditioning DOMETIC Freshjet 2200 (OEM) (Dependency: ABH14440, Note: H145) | 29 | - |
| Warmluftausströmer für Vorzelt - ALDE (Dependency: ABH14436) | 1 | - |
| Vorzelt Warmluftset - Truma (Dependency: ABH30179) | - | - |
| Waste water tank 25 ltr., rollable | 4 | - |
| City water connection | 2 | - |
| ELECTRONICS / MULTIMEDIA / SAFETY | ||
| Combi external socket (electricity + TV) | - | - |
| Touch-Control-Panel with intuitive operating concept of networked components, incl. indoor and outdoor temperature sensor instead of standard Control-Panel (Dependency: ABH21567) | - | - |
| Socket plus Package | - | - |
| Lithium-ion board battery (Dependency: ABH14454) | 12 | - |
| AGM battery, suitable for solar technology (Dependency: ABH14456) | 24 | - |
| SAT system CARO® + Premium (Dependency: ABH14458, ABH23852, Note: H145) | 17 | - |
| 27" SMART TV set with HD tuner (Dependency: ABH14460, Note: H145) | 4 | - |
| TV holder | 2 | - |
| KNAUS Bluetooth sound system | 2 | - |
| Velocate® GPS tracker (Note: H146) | - | - |
| Velocate® LIFETIME license with unlimited, personal, EU-wide tracking (Dependency: ABH14462) | - | - |
| Velocate® sensors (gas, temperature, motion) (Dependency: ABH14464) | - | - |
| AWNING / AWNING ACCESSORIES | ||
| Awning 405 x 250 cm - on-roof mounting, white (Dependency: ABH21570, ABH23852) | 31 | - |
| Awning 405 x 250 cm - on-roof mounting, anthracite (Dependency: ABH14374, ABH23852) | 31 | - |
| MISCELLANEOUS | ||
| MOT and registration document | - | - |
| ACCESSORIES | ||
| Breakdown service set | 2 | - |
| Winter-Paket (55 kg) | |
|---|---|
| Winter cover for gas locker in KNAUS design | - |
| ALDE hot water underfloor heating | - |
| ALDE hot water heating | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| TV Package 27'' (23 kg) | |
| SAT system CARO® + Premium | - |
| Combi external socket (electricity + TV) | - |
| TV holder | - |
| 27" SMART TV set with HD tuner | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Energy-Basic Package | |
| Intelligent charger with 25 A charging power | - |
| Touch-Control-Panel with intuitive operating concept of networked components, incl. indoor and outdoor temperature sensor instead of standard Control-Panel | - |
| Total price options | - |
| List price package | - |
| Saving | - |
| Connected-Security-Package for velocate® GPS-Tracker | |
| velocate® GPS tracker | - |
| velocate® LIFETIME license with unlimited, personal, EU-wide tracking | - |
| velocate® sensors (gas, temperature, motion) | - |
| Total price options | - |
| List price package | - |
| Saving | - |
